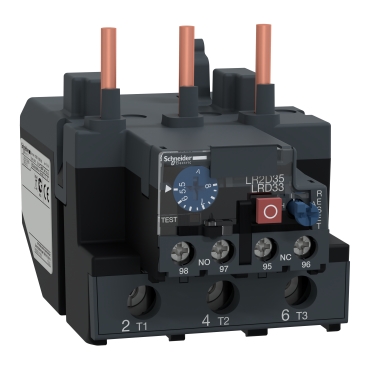

Thermal Overload 5A-8A | Adjustable Range | Fits LC Series Contactors | Manual & Automatic Reset | @Pack of 1 | by Clipsal
The Thermal Overload 5A-8A is designed for reliable motor protection, featuring an adjustable range from 5A to 8A and compatibility with LC series contactors. With both manual and automatic reset options, it ensures easy fault identification and dependable overload protection for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload 5A-8A | Adjustable Range | Fits LC Series Contactors | Manual & Automatic Reset | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLRD3312
Alternatively Known As: Motor Overload Relay, Overload Protector 5A-8A, LC Series Overload Relay, SCHLRD3312 Overload
Technical Specifications
- Current Range: 5A-8A adjustable
- Mounting: Fits LC series contactors
- Reset: Manual and automatic
- Trip Class: 10A
- Auxiliary Contacts: 1 NO + 1 NC
- Operating Temperature: -20°C to +60°C
- Conformity: IEC 60947-4-1
- Dimensions (H x L x W): 75mm x 70mm x 45mm
- Weight: 0.25 kg
Key Features
- Adjustable thermal overload range from 5A to 8A
- Direct mounting to LC series contactors
- Manual and automatic reset options
- Trip indication for easy fault identification
- Reliable protection against motor overloads
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Motor protection in industrial control panels
- Overload protection for machinery
- Suitable for use with LC series contactors
- Commercial and light industrial electrical installations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents unnecessary energy consumption by protecting motors from damage
- Extends equipment lifespan, reducing waste and replacement frequency
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Thermal Overload 5A-8A FITS LC SCHLRD3312 is available for immediate purchase. Ideal for industrial and commercial motor protection applications.
