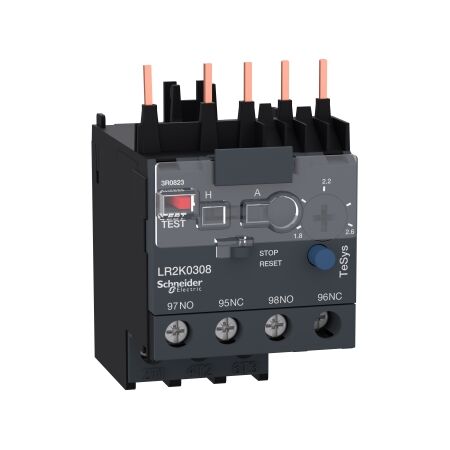

Thermal Overload Relay 1.8-2.6A | 690V Rated | Manual Reset by Clipsal
Thermal overload relay with 1.8-2.6A adjustment range and 690V rating—ideal for motor protection in industrial applications. Built for reliability, with manual reset and trip indicator features.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated insulation voltage: 690V for power circuit.
- Control type: red push-button for trip test, blue push-button for stop and manual reset.
- IP degree of protection: IP2X conforming to IEC 60529.
- Thermal overload class: class 10A conforming to IEC 60947-4-1.
- Phase failure sensitivity: Yes conforming to IEC 60947-4-1.
- Operating altitude: 2000m without derating.
- Dimensions (H x L x W): 58mm x 65mm x 45mm
- Weight: 0.145 kg
Key Features
- Differential thermal overload relay with a thermal protection adjustment range of 1.8...2.6A.
- Rated operational voltage up to 690V for power circuits.
- Includes trip indicator and manual reset functions.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Motor protection in industrial applications
- Compatible with various TeSys contactors
Standards & Compliance
- Complies with BS 4941, VDE 0660, IEC 60947.
Environmental Benefits
- Packaging made with recycled cardboard.
- No single-use plastic in packaging.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The TeSys LR2 K Differential Thermal Overload Relay is available now for immediate purchase. Ideal for motor protection in industrial settings.
