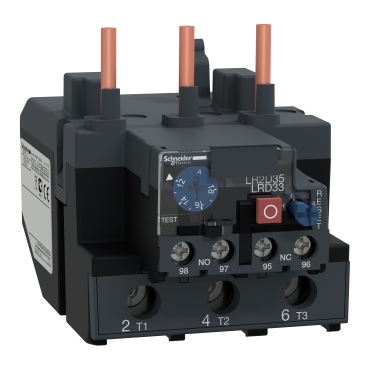

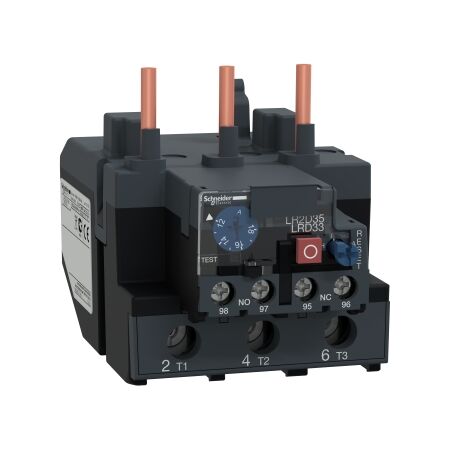

Thermal Overload Relay 12A-18A | Adjustable Range | Manual & Automatic Reset | by Clipsal
The Thermal Overload Relay 12A-18A is designed for reliable motor protection, featuring an adjustable current range of 12A to 18A and both manual and automatic reset options. Ideal for industrial and commercial applications, this compact relay ensures optimal performance and safety for motors, pumps, and machinery, preventing overload conditions effectively.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay 12A-18A | Adjustable Range | Manual & Automatic Reset | by Clipsal
Brand: Clipsal
SKU: SCHLRD3321
Alternatively Known As: motor overload relay, thermal overload relay, motor protection relay, overload protector, Clipsal overload relay
Technical Specifications
- Current Range: 12A-18A adjustable
- Trip Class: 10A
- Reset: Manual and automatic
- Mounting: Direct on contactor
- Auxiliary contacts: 1 NO + 1 NC
- Operating temperature: -20°C to +60°C
- Standards: IEC 60947-4-1 compliant
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.25 kg
Key Features
- Adjustable thermal overload range: 12A to 18A
- Reliable protection for motors against overload conditions
- Manual and automatic reset options
- Compact design for easy integration into control panels
- Compatible with Clipsal and Schneider Electric contactors
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure correct integration and safety compliance.
Applications
- Industrial motor protection
- Commercial electrical panels
- Pumps, fans, and compressors
- Machinery requiring overload protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents unnecessary energy consumption by disconnecting overloaded motors
- Extends equipment lifespan, reducing waste and resource use
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHLRD3321 Thermal Overload 12A-18A is available for immediate purchase. Ideal for industrial and commercial motor protection applications.
