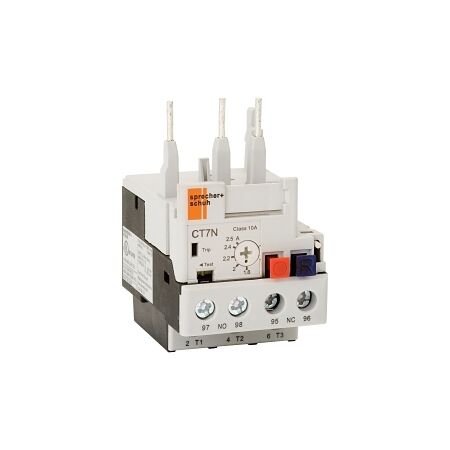

S+S CT7N Thermal Overload Relay 15 to 20A Direct Mount Manual or Auto Reset for CA7 9 and 23A

Thermal Overload Relay 15-20A | Direct Mount | Manual/Auto Reset by NHP

BRAND: NHP

SKU: CT7N23C20

$86.10 List price: $114.30

+ −

30 Days Return Delivery Options

Thermal overload relay with 15-20A adjustable range and direct mount design—ideal for industrial motor protection. Built for reliability, with manual or automatic reset options for enhanced safety.

Description
Attachments

Product Name/Title: S+S CT7N Thermal Overload Relay 15 to 20A Direct Mount Manual or Auto Reset for CA7 9 and 23A

Brand: NHP

SKU: CT7N23C20

Alternatively Known As: Thermal Overload Relay, Motor Protection Relay

Technical Specifications

Adjustable Current Range: 15-20 A
Release Class: CLASS 10 A
Max Rated Operation Voltage: 690 V
Number of Auxiliary Contacts: 1 Normally Closed, 1 Normally Open
Reset Function: Automatic and Push Button
Type of Electrical Connection: Screw Connection
Mounting Method: Direct Attachment
Dimensions (H x L x W): 75.5mm x 63.5mm x 45mm
Weight: 0.12 kg

Key Features

Adjustable current range from 15 to 20 A.
Manual or automatic reset options.
Direct mount design for easy installation.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor protection in various applications
Commercial: Equipment requiring thermal overload protection

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Designed to enhance equipment longevity by preventing overheating.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The S+S CT7N Thermal Overload Relay 15 to 20A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.

CT7N23C20-AU-Motor-Thermal-Overload-Relay-Datasheet.pdf (CT7N23C20-AU-Motor-Thermal-Overload-Relay-Datasheet.pdf, 1,465 Kb) [Download]
