Thermal Overload Relay 17-25A | 690VAC | 1NO+1NC | Class 10A by Clipsal
Thermal overload relay with 17-25A adjustment range and 690VAC rating—ideal for industrial motor protection. Built for reliability, with EverLink BTR screw connectors and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

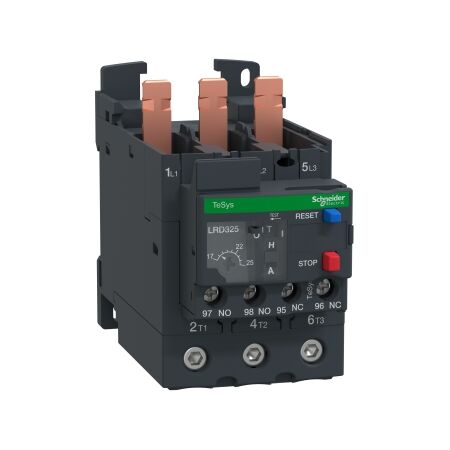

Product Name/Title: TeSys LR.D, Thermal overload relay, TeSys Deca, 690VAC, 17 to 25A, 1NO+1NC, class 10A, EverLink BTR screw
Brand: Clipsal
SKU: LRD325
Alternatively Known As: Thermal overload relay, TeSys Deca relay, motor protection relay
Technical Specifications
- Rated operational voltage: 690 V AC, 0...400 Hz.
- Control type: Red push-button for stop, blue push-button for reset.
- Connections: EverLink BTR screw connectors for power circuit.
- Thermal overload class: Class 10A conforming to IEC 60947-4-1.
- Tripping threshold: 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1.
- Rated insulation voltage: 600 V conforming to CSA and UL.
- Rated impulse withstand voltage: 6 kV.
- Dimensions (H x L x W): 70mm x 123mm x 55mm
- Weight: 0.375 kg
Key Features
- Differential thermal overload relay with a thermal protection adjustment range of 17 to 25A.
- Compatible with LC1D40, LC1D65, and LC1D50A contactors.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various applications
Standards & Compliance
- Complies with EN/IEC 60947-4-1 and other relevant standards.
Environmental Benefits
- Packaging made with recycled cardboard.
- Packaging without single-use plastic.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The TeSys LR.D Thermal Overload Relay is available now for immediate purchase. Ideal for industrial applications requiring reliable motor protection.
