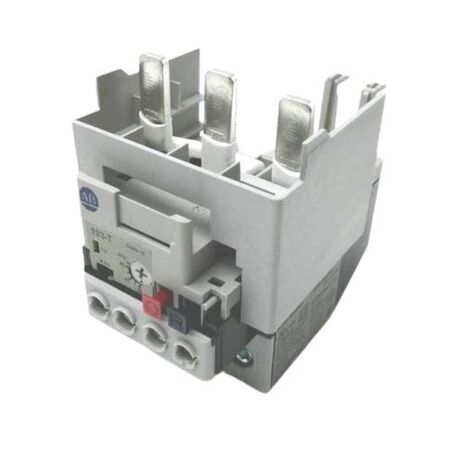

Thermal Overload Relay 193T1DC75 | Bimetallic Design | 690 VAC Rated | 58-75 Amp Range | by Allen-Bradley
The Thermal Overload Relay 193T1DC75 is a bimetallic relay designed for reliable motor protection in industrial applications. With a voltage rating of 690 VAC and an adjustable current setting range of 58-75 amps, it ensures optimal performance and safety. Ideal for use with 100-C75 to 100-C97 contactors, this relay helps prevent motor damage and energy waste, making it essential for electrical control panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Bimetallic thermal overload relay
- Voltage rating: 690 VAC isolated voltage
- Current setting range: 58-75 Amps
- Compatible contactors: 100-C75 to 100-C97 series
- Dimensions (H x L x W): 90mm x 70mm x 45mm
- Weight: 0.5 kg
Key Features
- Bimetallic thermal overload relay
- 690 VAC rated isolated voltage
- 58-75 amp adjustable setting range
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper integration with contactors and compliance with electrical standards.
Applications
- Industrial motor protection
- Use with 100-C75 to 100-C97 contactors
- Electrical control panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent motor damage and energy waste by providing reliable overload protection
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 193T1DC75 Thermal Overload Relay is available for immediate purchase, ideal for industrial motor protection applications.
