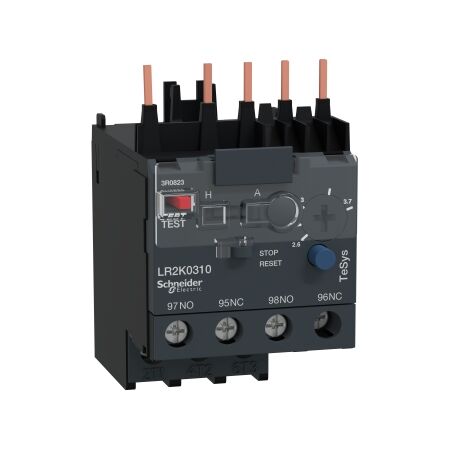

TeSys LR2 K, Differential thermal overload relay, TeSys K, 2.6...3.7A, class 10A

Thermal Overload Relay 2.6-3.7A | Class 10A | Manual Reset by Clipsal

BRAND: Clipsal

SKU: LR2K0310

$63.80 List price: $95.70

+ −

30 Days Return Delivery Options

Thermal overload relay with 2.6-3.7A adjustment range and Class 10A protection—ideal for motor protection in industrial applications. Built for safety, with manual reset and trip indicator features.

Description
Attachments

Product Name/Title: TeSys LR2 K, Differential thermal overload relay, TeSys K, 2.6...3.7A, class 10A

Brand: Clipsal

SKU: LR2K0310

Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, TeSys K Relay

Technical Specifications

Rated operational voltage: <= 690V for power circuit.
Control type: red push-button for trip test, blue push-button for stop and manual reset.
IP degree of protection: IP2X conforming to IEC 60529.
Operating temperature: -20...55 °C without derating.
Rated insulation voltage: 690V conforming to IEC 60947.
Phase failure sensitivity: Yes conforming to IEC 60947-4-1.
Rated impulse withstand voltage: 6 kV.
Dimensions (H x L x W): 58mm x 65mm x 45mm
Weight: 0.145 kg

Key Features

Differential thermal overload relay with a thermal protection adjustment range of 2.6...3.7A.
Class 10A thermal overload class conforming to IEC 60947-4-1.
Local signalling with trip indicator and manual reset options.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Motor protection in industrial applications
Compatible with various TeSys contactors

Standards & Compliance

Complies with IEC 60947 for safety and performance standards.

Environmental Benefits

Packaging made with recycled cardboard.
No single-use plastic in packaging.

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The TeSys LR2 K Differential Thermal Overload Relay is available now for immediate purchase. Ideal for motor protection in industrial settings.

LR2K0310 (LR2K0310, 244 Kb) [Download]
