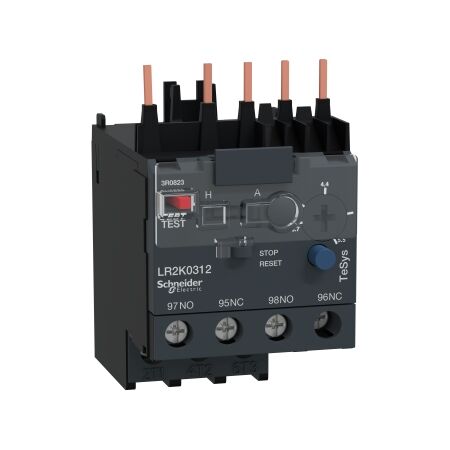

TeSys LR2 K, Differential thermal overload relay, TeSys K, 3.7...5.5A, class 10A

Thermal Overload Relay 3.7-5.5A | Class 10A | 690V Rated by Clipsal

BRAND: Clipsal

SKU: LR2K0312

$63.80 List price: $95.70

+ −

30 Days Return Delivery Options

Thermal overload relay with 3.7-5.5A adjustment range and Class 10A protection—ideal for motor protection in industrial applications. Built for safety with manual reset and trip indicator, compatible with TeSys contactors.

Description
Attachments

Product Name/Title: TeSys LR2 K, Differential thermal overload relay, TeSys K, 3.7...5.5A, class 10A

Brand: Clipsal

SKU: LR2K0312

Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, TeSys K Relay

Technical Specifications

Rated operational voltage: <= 690V for power circuit.
Control type: red push-button for trip test, blue push-button for stop and manual reset.
Screw clamp terminals for various cable sizes.
IP2X protection rating conforming to IEC 60529.
Operating temperature range: -20...55 °C without derating.
Dimensions (H x L x W): 58mm x 65mm x 45mm
Weight: 0.145 kg

Key Features

Differential thermal overload relay with a thermal protection adjustment range of 3.7...5.5A.
Class 10A thermal overload class.
Rated operational voltage up to 690V.
Local signalling with trip indicator and manual reset options.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Motor protection in industrial applications
Compatible with various TeSys contactors

Standards & Compliance

Complies with IEC 60947 for safety and performance standards.

Environmental Benefits

Packaging made with recycled cardboard.
Conforms to environmental regulations.

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The TeSys LR2 K Differential Thermal Overload Relay is available now for immediate purchase. Ideal for motor protection in industrial settings.

LR2K0312 (LR2K0312, 244 Kb) [Download]
