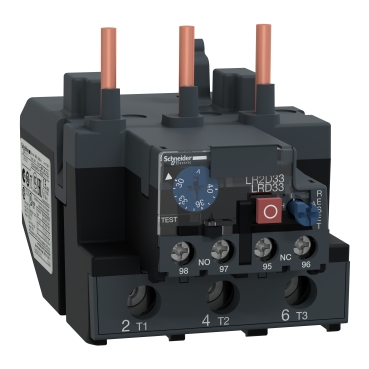

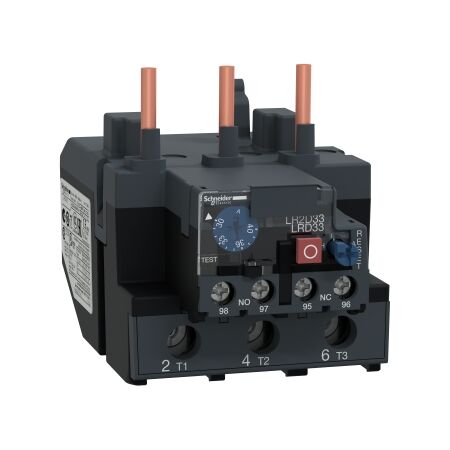

Thermal Overload Relay 30-40A | Manual & Automatic Reset | Phase Failure Sensitivity | by Clipsal
The Thermal Overload Relay 30-40A is designed for reliable motor protection in industrial automation. With adjustable current settings and both manual and automatic reset options, it ensures optimal performance and safety. Ideal for HVAC systems, pumps, and conveyor systems, this relay features phase failure sensitivity to prevent motor damage and improve energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay 30-40A | Manual & Automatic Reset | Phase Failure Sensitivity | by Clipsal
Brand: Clipsal
SKU: SCHLRD3355
Alternatively Known As: thermal overload relay, motor overload protector, LC1D80 overload, LC1D95 overload, SCHLRD3355, Schneider overload relay
Technical Specifications
- Current adjustment range: 30-40A
- Trip class: 10A
- Reset: Manual and automatic
- Mounting: Direct on LC1D80-D95 contactors
- Phase failure sensitivity
- Auxiliary contacts: 1 NO + 1 NC
- Operating temperature: -20°C to +60°C
- Standards: IEC 60947-4-1
- Dimensions (H x L x W): 100mm x 120mm x 70mm
- Weight: 0.35 kg
Key Features
- Adjustable current range: 30-40A
- Compatible with LC1D80 and LC1D95 contactors
- Manual and automatic reset options
- Phase failure sensitivity for enhanced motor protection
- Trip class 10A for fast response to overloads
- Direct mounting on contactor
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure correct integration with contactors and compliance with safety standards.
Applications
- Motor protection in industrial automation
- Control panels for manufacturing equipment
- HVAC systems
- Pumps and compressors
- Conveyor systems
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Prevents motor damage, reducing equipment waste
- Improves energy efficiency by protecting motors from excessive current draw
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal SCHLRD3355 Thermal Overload Relay is available for immediate purchase. Ideal for industrial motor protection and automation panels.
