Home/Electrical/Switchgear/Overloads/Thermal Overloads/Thermal Overload Relay 37-50A | 690VAC | 1NO+1NC | Class 10A by Clipsal

Trade Discount 33%

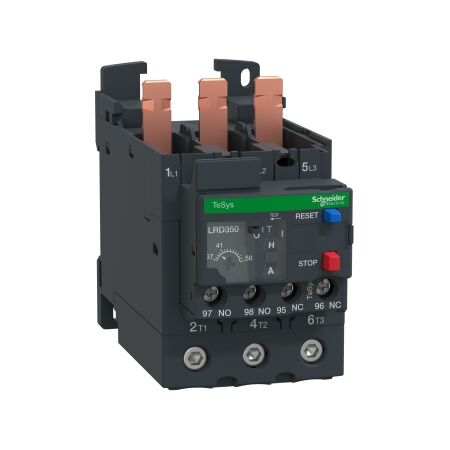

TeSys LR.D, Thermal overload relay, TeSys Deca, 690VAC, 37 to 50A, 1NO+1NC, class 10A, EverLink BTR screw

Thermal Overload Relay 37-50A | 690VAC | 1NO+1NC | Class 10A by Clipsal

BRAND: Clipsal

SKU: LRD350

$276.90 List price: $415.40

+ −

30 Days Return Delivery Options

Thermal overload relay with 37-50A adjustment range and 690VAC rating—ideal for industrial motor protection. Built for safety with 1NO+1NC configuration and EverLink BTR screw connectors.

Description
Attachments

Product Name/Title: TeSys LR.D, Thermal overload relay, TeSys Deca, 690VAC, 37 to 50A, 1NO+1NC, class 10A, EverLink BTR screw

Brand: Clipsal

SKU: LRD350

Alternatively Known As: Thermal overload relay, Motor protection relay, TeSys Deca relay

Technical Specifications

Rated insulation voltage: 600V conforming to CSA and UL.
Rated impulse withstand voltage: 6kV.
Control circuit: screw clamp terminals for flexible and solid cables.
Power circuit: EverLink BTR screw connectors for flexible and solid cables.
Thermal overload class: class 10A conforming to IEC 60947-4-1.
Network frequency: 0...400 Hz.
Dimensions (H x L x W): 70mm x 123mm x 55mm
Weight: 0.375 kg

Key Features

Differential thermal overload relay with 1NO+1NC configuration.
Rated operational voltage of 690VAC.
Thermal protection adjustment range of 37 to 50A.
IP20 rated for protection against solid objects.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor protection in various applications

Standards & Compliance

Complies with EN/IEC 60947-4-1 for safety and performance standards.

Environmental Benefits

Packaging made with recycled cardboard.
Packaging without single use plastic.

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The TeSys LR.D Thermal Overload Relay is available now for immediate purchase. Ideal for industrial applications requiring reliable motor protection.

LRD350 (LRD350, 243 Kb) [Download]
