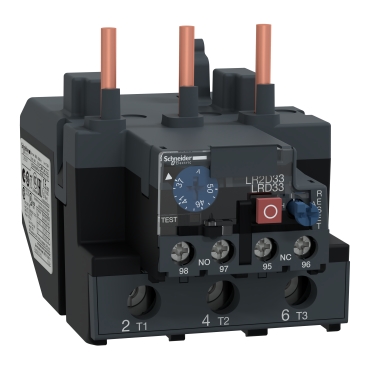

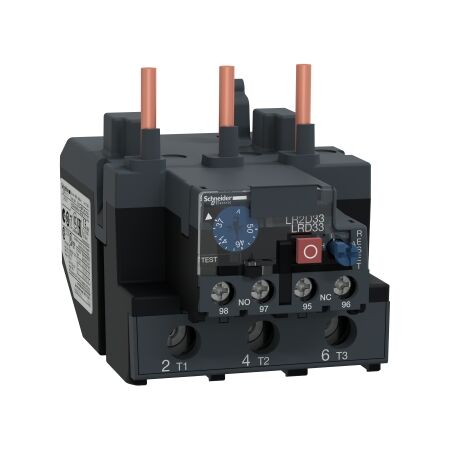

Thermal Overload Relay 37-50A | Manual/Automatic Reset | Trip Class 10A | by Clipsal
The Thermal Overload Relay 37-50A is designed for reliable motor protection, featuring an adjustable current range of 37-50A and manual/automatic reset options. Ideal for industrial and commercial applications, this relay ensures fast response with a trip class of 10A, preventing motor damage and improving energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay 37-50A | Manual/Automatic Reset | Trip Class 10A | by Clipsal
Brand: Clipsal
SKU: SCHLRD3357A66
Alternatively Known As: motor overload relay, thermal overload relay, overload protector, motor protection relay, SCHLRD3357A66
Technical Specifications
- Current Range: 37-50A
- Trip Class: 10A
- Reset: Manual/Automatic
- Mounting: Direct on contactor
- Auxiliary contacts: 1 NO + 1 NC
- Operating temperature: -20°C to +60°C
- Standards: IEC 60947-4-1
- Dimensions (H x L x W): 90mm x 100mm x 45mm
- Weight: 0.6 kg
Key Features
- Adjustable current range: 37-50A
- Reliable thermal overload protection for motors
- Manual and automatic reset options
- Trip class 10A for fast response
- Compact design for easy panel integration
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical standards and safe operation.
Applications
- Industrial motor protection
- Commercial electrical panels
- Manufacturing equipment
- HVAC systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents motor damage, reducing equipment waste and extending service life.
- Improves energy efficiency by protecting motors from overheating.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Thermal Overload 37-50A CL10A (SCHLRD3357A66) is available for immediate purchase. Ideal for industrial and commercial motor protection applications.
