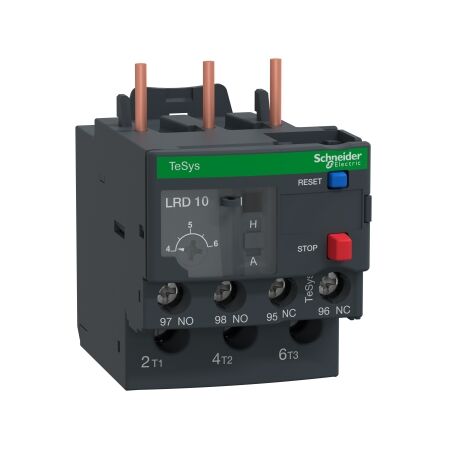

TeSys LR.D, Thermal overload relay, TeSys Deca, 690VAC, 3P, 4 to 6A, 1NO+1NC, class 10A, screw clamp

Thermal Overload Relay 4-6A | 690VAC | 1NO+1NC | Screw Clamp by Clipsal

BRAND: Clipsal

SKU: LRD10

$60.20 List price: $90.30

+ −

30 Days Return Delivery Options

Thermal overload relay with 4-6A adjustment range and 690VAC rating—ideal for motor protection in industrial applications. Built for reliability, with screw clamp terminals and 1NO+1NC contacts.

Description
Attachments

Product Name/Title: TeSys LR.D, Thermal overload relay, TeSys Deca, 690VAC, 3P, 4 to 6A, 1NO+1NC, class 10A, screw clamp

Brand: Clipsal

SKU: LRD10

Alternatively Known As: Thermal Overload Relay, TeSys Deca Relay, LRD Relay

Technical Specifications

Rated insulation voltage: 600V (CSA), 690V (IEC)
Thermal protection adjustment range: 4...6 A
Rated impulse withstand voltage: 6 kV
Control type: red push-button for stop, blue push-button for reset
Climatic withstand: conforming to IACS E10
IP degree of protection: IP20
Ambient air temperature for operation: -20...60 °C
Dimensions (H x L x W): 66mm x 70mm x 45mm
Weight: 0.124 kg

Key Features

Differential thermal overload relay with class 10A rating
Rated operational voltage of 690 VAC
Screw clamp terminals for easy connections
1 NO + 1 NC auxiliary contact composition

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Motor protection in industrial applications
Compatible with various TeSys contactors

Standards & Compliance

Complies with IEC 60947-4-1 for safety and performance standards.

Environmental Benefits

Green Premium product status indicating reduced environmental impact.

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The TeSys LR.D Thermal Overload Relay is available now for immediate purchase. Ideal for motor protection in industrial settings.

LRD10 (LRD10, 244 Kb) [Download]
