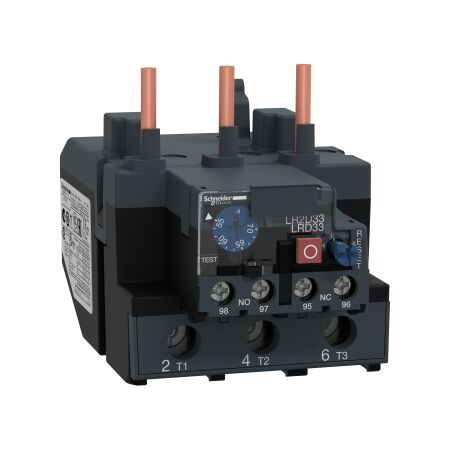

Thermal Overload Relay 55-70A | 1000V AC | IP20 Protection by Clipsal
Thermal overload relay with 55-70A adjustment range and 1000V AC rating—ideal for industrial motor protection. Built for safety and reliability, with IP20 protection and compatibility with LC1D95 and LC1D80 contactors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TeSys LR.D, Thermal Overload Relays, TeSys Deca, 55...70 A , class 10A
Brand: Clipsal
SKU: LRD3361
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, TeSys LRD
Technical Specifications
- Rated insulation voltage: 1000 V AC.
- Thermal protection adjustment range: 55...70 A.
- Control type: red push-button for stop, blue push-button for reset.
- Connections: screw clamp terminals for power and control circuits.
- Tripping threshold: 1.14 +/- 0.06 Ir.
- Phase failure sensitivity: tripping current 130% of Ir on two phases.
- Dimensions (H x L x W): 81mm x 115mm x 70mm
- Weight: 0.51 kg
Key Features
- Differential thermal overload relay for motor protection.
- Rated operational voltage of 1000 V AC.
- Compatible with LC1D95 and LC1D80 contactors.
- IP20 protection rating.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various applications
Standards & Compliance
- Complies with EN/IEC 60947-4-1 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard.
- Packaging without single-use plastic.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The TeSys LR.D Thermal Overload Relay is available now for immediate purchase. Ideal for industrial motor protection applications.
