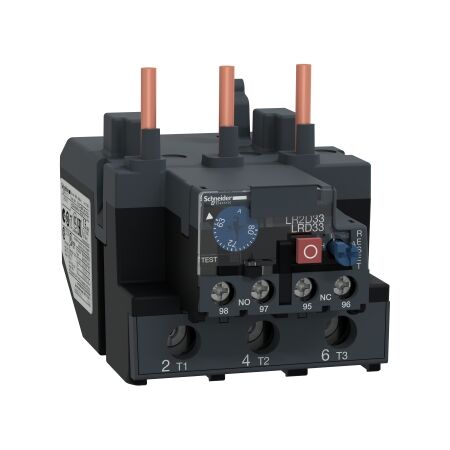

TeSys LR.D, Thermal Overload Relays, TeSys Deca, 63...80A, class 10A

Thermal Overload Relay 63-80A | 1000V AC | IP20 Protection by Clipsal

BRAND: Clipsal

SKU: LRD3363

$886.40 List price: $1,329.60

+ −

30 Days Return Delivery Options

Thermal overload relay with 63-80A adjustment range and 1000V AC rating—ideal for industrial motor protection. Built for reliability, with IP20 protection and compatibility with LC1D80 and LC1D95 contactors.

Description
Attachments

Product Name/Title: TeSys LR.D, Thermal Overload Relays, TeSys Deca, 63...80A, class 10A

Brand: Clipsal

SKU: LRD3363

Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, TeSys LRD

Technical Specifications

Thermal protection adjustment range: 63...80 A
Control type: red push-button for stop, blue push-button for reset
Connections: screw clamp terminals for power and control circuits
Rated insulation voltage: 1000 V AC
Network frequency: 0...400 Hz
Tripping threshold: 1.14 +/- 0.06 Ir
Auxiliary contact composition: 1 NO + 1 NC
Flame retardance: V1 conforming to UL 94
Mechanical robustness: vibrations 6 Gn, shocks 15 Gn
Dimensions (H x L x W): 81mm x 115mm x 70mm
Weight: 0.51 kg

Key Features

Differential thermal overload relay for motor protection.
Rated operational voltage of 1000 V AC.
Compatible with LC1D80 and LC1D95 contactors.
IP20 protection rating.

Professional Installation Requirements

Professional installation is recommended for optimal performance and safety.

Applications

Industrial: Motor protection in various applications

Standards & Compliance

Complies with EN/IEC 60947-4-1 and other relevant standards.

Environmental Benefits

Packaging made with recycled cardboard.
Conforms to environmental standards.

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The TeSys LR.D Thermal Overload Relay is available now for immediate purchase. Ideal for industrial motor protection applications.

LRD3363 (LRD3363, 248 Kb) [Download]
