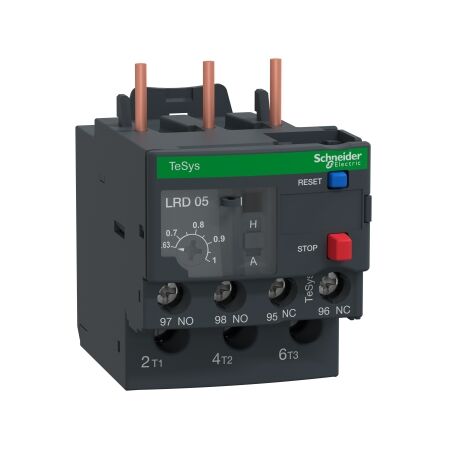

TeSys LR.D, Thermal overload relay, TeSys Deca, 690VAC, 0.63 to 1A, 1NO+1NC, class 10A, screw clamp

Thermal Overload Relay 690VAC | 0.63-1A | 1NO+1NC | IP20 by Clipsal

BRAND: Clipsal

SKU: LRD05

$67.90 List price: $101.90

+ −

30 Days Return Delivery Options

Thermal overload relay with 690VAC rating and 0.63-1A adjustment range—ideal for motor protection in industrial applications. Built for reliability, with 1NO+1NC contacts and IP20 protection.

Description
Attachments

Product Name/Title: TeSys LR.D, Thermal overload relay, TeSys Deca, 690VAC, 0.63 to 1A, 1NO+1NC, class 10A, screw clamp

Brand: Clipsal

SKU: LRD05

Alternatively Known As: Thermal overload relay, TeSys Deca relay, Motor protection relay

Technical Specifications

Rated insulation voltage: 600V (CSA), 690V (IEC).
Control circuit: screw clamp terminals for flexible and solid cables.
Tripping threshold: 1.14 +/- 0.06 Ir.
Rated impulse withstand voltage: 6 kV.
Mechanical robustness: vibrations up to 6 Gn, shocks up to 15 Gn.
Dimensions (H x L x W): 66mm x 70mm x 45mm
Weight: 0.124 kg

Key Features

Differential thermal overload relay with 1NO+1NC contacts.
Rated operational voltage of 690VAC.
Thermal protection adjustment range from 0.63 to 1A.
IP20 rated for protection against solid objects.

Professional Installation Requirements

Professional installation is recommended for optimal performance and safety.

Applications

Motor protection in industrial applications
Compatible with various TeSys contactors

Standards & Compliance

Complies with IEC 60947-4-1 for safety and performance.

Environmental Benefits

Green Premium product status indicating reduced environmental impact.

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The TeSys LR.D Thermal Overload Relay is available now for immediate purchase. Ideal for motor protection in industrial settings.

LRD05 (LRD05, 245 Kb) [Download]
