Home/Electrical/Switchgear/Overloads/Thermal Overloads/Thermal Overload Relay 690VAC | 2.5-4A | 1NO+1NC | Screw Clamp by Clipsal

Trade Discount 33%

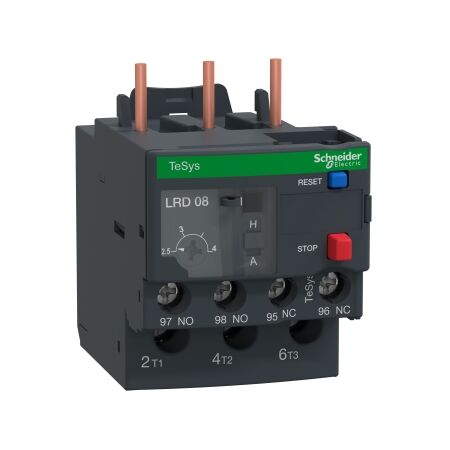

TeSys LR.D, Thermal overload relay, TeSys Deca, 690VAC, 3P, 2.5 to 4A, 1NO+1NC, class 10A, screw clamp

Thermal Overload Relay 690VAC | 2.5-4A | 1NO+1NC | Screw Clamp by Clipsal

BRAND: Clipsal

SKU: LRD08

$60.20 List price: $90.30

+ −

30 Days Return Delivery Options

Thermal overload relay with 690VAC rating and 2.5-4A range—ideal for motor protection in industrial applications. Built for reliability, with screw clamp terminals and 1NO+1NC auxiliary contacts.

Description
Attachments

Product Name/Title: TeSys LR.D, Thermal overload relay, TeSys Deca, 690VAC, 3P, 2.5 to 4A, 1NO+1NC, class 10A, screw clamp

Brand: Clipsal

SKU: LRD08

Alternatively Known As: Thermal overload relay, TeSys Deca relay, Motor protection relay

Technical Specifications

Rated insulation voltage: 600V (CSA), 690V (IEC)
Network frequency: 0...400 Hz
Tripping threshold: 1.14 +/- 0.06 Ir
Flame retardance: V1 conforming to UL 94
Dielectric strength: 1.89 kV at 50 Hz
Mechanical robustness: vibrations 6 Gn, shocks 15 Gn
Dimensions (H x L x W): 66mm x 70mm x 45mm
Weight: 0.124 kg

Key Features

Differential thermal overload relay with class 10A rating.
Rated operational voltage of 690 VAC.
Screw clamp terminals for easy connections.
Includes 1 NO + 1 NC auxiliary contact.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Motor protection in industrial applications
Compatible with various TeSys contactors

Standards & Compliance

Complies with IEC 60947-4-1 for safety and performance standards.

Environmental Benefits

Green Premium product status indicating reduced environmental impact.

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The TeSys LR.D Thermal Overload Relay is available now for immediate purchase. Ideal for motor protection in industrial settings.

LRD08 (LRD08, 244 Kb) [Download]
