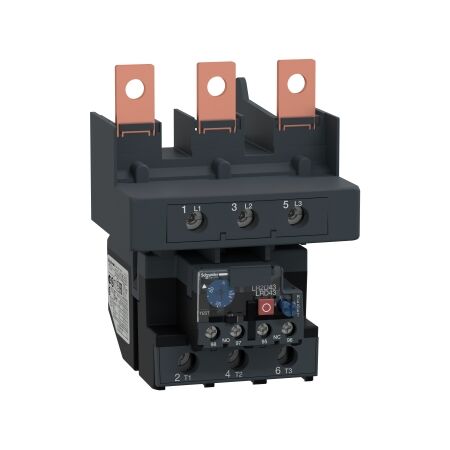

Thermal Overload Relay 80-104A | Class 10A | IP20 Protection by Clipsal
Thermal overload relay with 80-104A adjustment range and class 10A protection—ideal for industrial motor protection. Built for safety and reliability, with IP20 rating and professional installation recommended.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TeSys LR.D, Thermal Overload Relays, TeSys Deca, 80...104A, class 10A, lug clamps
Brand: Clipsal
SKU: LRD4365
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, TeSys Deca Relay
Technical Specifications
- Rated insulation voltage: 1000 V AC conforming to IEC 60947-4-1.
- Control type: red push-button for stop, blue push-button for reset.
- Connections: screw clamp terminals for power and control circuits.
- Thermal overload class: class 10A conforming to IEC 60947-4-1.
- Tripping threshold: 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1.
- Dielectric strength: 2.2 kV at 50 Hz conforming to IEC 60947-1.
- Dimensions (H x L x W): 155mm x 132mm x 135mm
- Weight: 0.9 kg
Key Features
- Differential thermal overload relay with a thermal protection adjustment range of 80...104A.
- Rated operational voltage of 1000 V AC for power circuits.
- IP20 protection rating.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various applications
Standards & Compliance
- Complies with EN/IEC 60947-4-1 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard.
- Packaging without single-use plastic.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The TeSys LR.D Thermal Overload Relay is available now for immediate purchase. Ideal for industrial applications requiring reliable motor protection.
