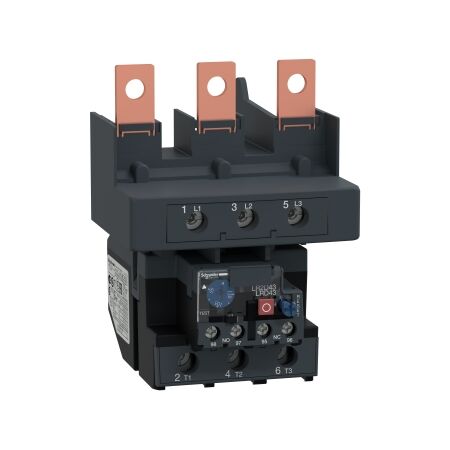

TeSys LR.D, Thermal Overload Relays, TeSys Deca, 95...120A, class 10A, lug clamps

Thermal Overload Relay 95-120A | Class 10A | IP20 Protection by Clipsal

BRAND: Clipsal

SKU: LRD4367

$1,133.30 List price: $1,699.90

+ −

30 Days Return Delivery Options

Thermal overload relay with 95-120A adjustment range and Class 10A protection—ideal for industrial motor protection. Built for safety and reliability, with IP20 rating and screw clamp terminals.

Description
Attachments

Product Name/Title: TeSys LR.D, Thermal Overload Relays, TeSys Deca, 95...120A, class 10A, lug clamps

Brand: Clipsal

SKU: LRD4367

Alternatively Known As: TeSys LRD, Thermal Overload Relay, Motor Protection Relay

Technical Specifications

Rated insulation voltage: 1000 V AC
Control type: Red push-button for stop, blue push-button for reset
Connections: Screw clamp terminals for power and control circuits
Thermal overload class: Class 10A
Tripping threshold: 1.14 +/- 0.06 Ir
Rated impulse withstand voltage: 6 kV
Flame retardance: V1 conforming to UL 94
Mechanical robustness: Vibration resistance of 6 Gn
Dimensions (H x L x W): 155mm x 110mm x 135mm
Weight: 0.9 kg

Key Features

Differential thermal overload relay with a thermal protection adjustment range of 95...120A.
Rated operational voltage of 1000 V AC for power circuits.
IP20 protection rating.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor protection in various applications

Standards & Compliance

Complies with EN/IEC 60947-4-1 for safety and performance standards.

Environmental Benefits

Packaging made with recycled cardboard.
Packaging without single use plastic.

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal TeSys LR.D Thermal Overload Relay is available now for immediate purchase. Ideal for industrial applications requiring reliable motor protection.

LRD4367 (LRD4367, 241 Kb) [Download]
