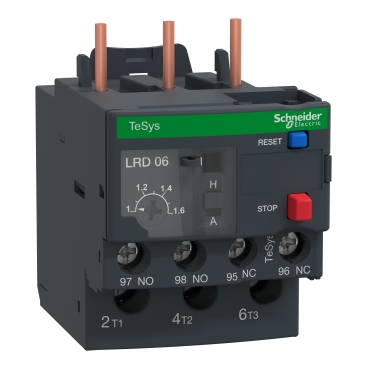

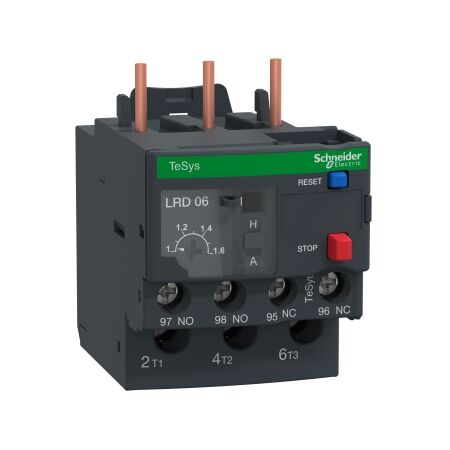

Thermal Overload Relay LRD | 1 to 1.6A Adjustable | 690VAC Operational Voltage | by Clipsal
The Thermal Overload Relay LRD is designed for motor protection with an adjustable current range of 1 to 1.6A and operational voltage up to 690VAC. Ideal for industrial automation and control panels, it features reliable thermal overload protection and manual/automatic reset options, ensuring safety and efficiency in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay LRD | 1 to 1.6A Adjustable | 690VAC Operational Voltage | by Clipsal
Brand: Clipsal
SKU: SCHLR3D06
Alternatively Known As: TeSys Deca LRD Thermal Overload Relay, Schneider LRD06, Motor Overload Relay 1-1.6A, LRD1.6A Relay, SCHLR3D06
Technical Specifications
- Current Range: 1 to 1.6A adjustable
- Operational Voltage: up to 690VAC
- Auxiliary Contacts: 1NO + 1NC
- Tripping Class: 10A
- Reset: Manual and automatic
- Mounting: Direct to contactor
- Suitable for unbalanced loads
- Dimensions (H x L x W): 70mm x 75mm x 45mm
- Weight: 0.15 kg
Key Features
- Adjustable current range: 1 to 1.6A
- Thermal overload protection for motors
- TeSys Deca series reliability
- 690VAC operational voltage
- 1 Normally Open (NO) + 1 Normally Closed (NC) auxiliary contacts
- Class 10A tripping for unbalanced loads
- Manual and automatic reset options
- Direct mounting to contactors
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical standards and safe operation.
Applications
- Motor protection in industrial automation
- Control panels for machinery
- HVAC systems
- Pumps and compressors
- Conveyor systems
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment
Environmental Benefits
- Prevents motor damage, reducing equipment waste
- Enhances energy efficiency by protecting against overloads
- Supports longer equipment lifespan
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal LRD Thermal Overload Relay SCHLR3D06 is available for immediate purchase. Ideal for industrial motor protection and automation panels.
