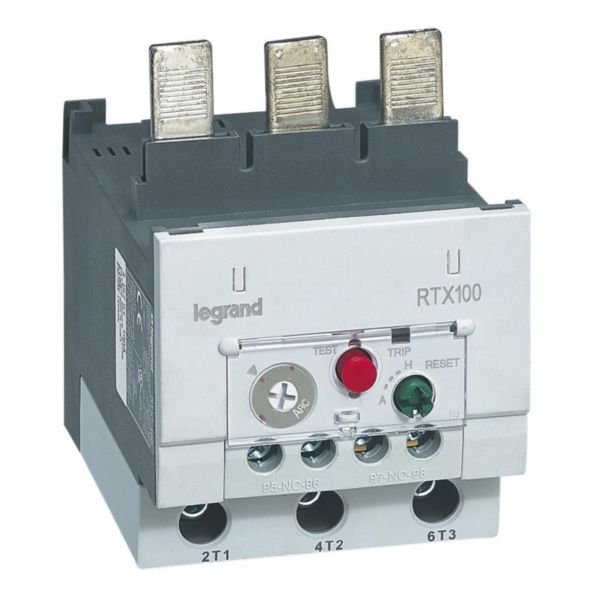

Thermal Overload Relay RTX3 100 | 18-25A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 100 is designed for reliable motor protection, featuring an adjustable current range of 18-25A and a maximum rated operation voltage of 690V. Ideal for industrial and tertiary motor control applications, this relay includes a trip indicator and a reset button selector for enhanced functionality, ensuring efficient motor operation and reduced downtime.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 100 | 18-25A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416743
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, RTX3 Thermal Relay, Legrand Motor Relay
Technical Specifications
- Adjustable current range: 18-25 A
- Max rated operation voltage (Ue): 690 V
- Mounting method: Direct attachment
- Type of electrical connection of main circuit: Screw connection
- Number of auxiliary contacts normally closed (NC): 1
- Number of auxiliary contacts normally open (NO): 1
- Release class: CLASS 10
- Auxiliary contact rating: 0.75A / 240V AC - 15
- Cage terminals capacity: Power 2.5mm² to 4mm², Auxiliary circuit 1mm²
- Reset button selector: Automatic or manual reset
- Includes trip indicator and Stop/Test button
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- 1NO + 1NC auxiliary contact (0.75A / 240V AC - 15)
- Cage terminals capacity: Power 2.5mm² to 4mm², Auxiliary circuit 1mm²
- Reset button selector with automatic or manual reset
- Trip indicator and Stop/Test button
- Direct attachment mounting method
- Screw connection for main circuit electrical connection
- Adjustable current range from 18 to 25 A
- Max rated operation voltage of 690 V
- Release class: CLASS 10
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure correct setup and compliance with safety standards.
Applications
- Tertiary and industrial motor control and protection
- Direct association with CTX3 contactors
- Industrial automation and machinery protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent motor damage and energy waste by providing reliable overload protection
- Supports efficient motor operation and reduces downtime
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Legrand Thermal Overload Relay RTX3 100 18-25A Class 10A Differential is available for immediate purchase, ideal for industrial and tertiary motor control applications.
