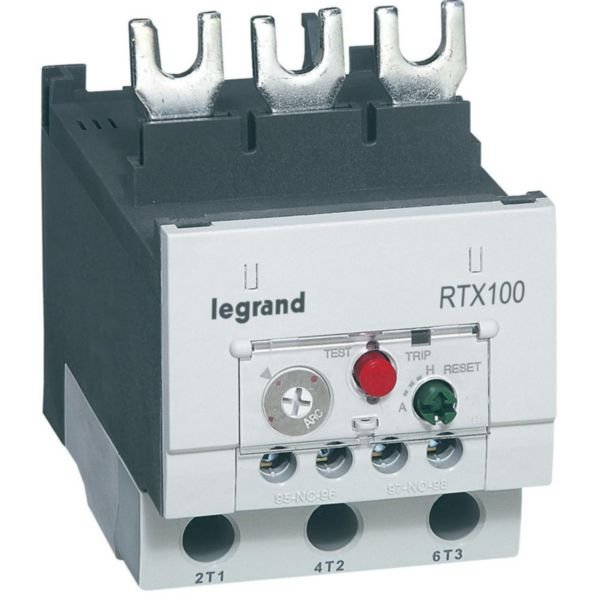

Thermal Overload Relay RTX3 100 | 22-32A Adjustable Range | Class 10A | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 100 is designed for reliable motor protection, featuring an adjustable current range of 22-32A and a maximum rated operation voltage of 690V. Ideal for industrial applications, this relay ensures precise overload protection, helping to extend motor life and reduce downtime. With direct attachment mounting and a trip indicator, it's perfect for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 100 | 22-32A Adjustable Range | Class 10A | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416724
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, RTX3 Overload Relay, Legrand Motor Relay
Technical Specifications
- Adjustable current range: 22-32 A
- Max rated operation voltage (Ue): 690 V
- Mounting method: Direct attachment
- Type of electrical connection: Screw connection
- Number of auxiliary contacts (normally closed): 1
- Number of auxiliary contacts (normally open): 1
- Number of auxiliary contacts (change-over): 0
- Release class: CLASS 10
- Auxiliary contact rating: 0.75A / 240V AC - 15
- Screw terminal capacity: Power 4mm² to 6mm², Auxiliary circuit 1mm²
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- 1NO + 1NC auxiliary contact (0.75A / 240V AC - 15)
- Screw terminals capacity: Power 4mm² to 6mm², Auxiliary circuit 1mm²
- Reset button selector with automatic or manual reset options
- Trip indicator and Stop/Test button
- Direct attachment mounting method
- Adjustable current range from 22 to 32 A
- Max rated operation voltage of 690 V
- Release class: CLASS 10
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is required to ensure correct setup and compliance with safety standards.
Applications
- Tertiary and industrial motor control and protection
- Direct association with CTX3 contactors
- Motor overload protection in industrial installations
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Supports longer motor life and reduces downtime, contributing to resource efficiency
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years. Refer to Legrand for specific warranty details.
Available Now
The Legrand Thermal Overload Relay RTX3 100 22-32A Class 10A is available for immediate purchase, ideal for industrial motor control and protection applications.
