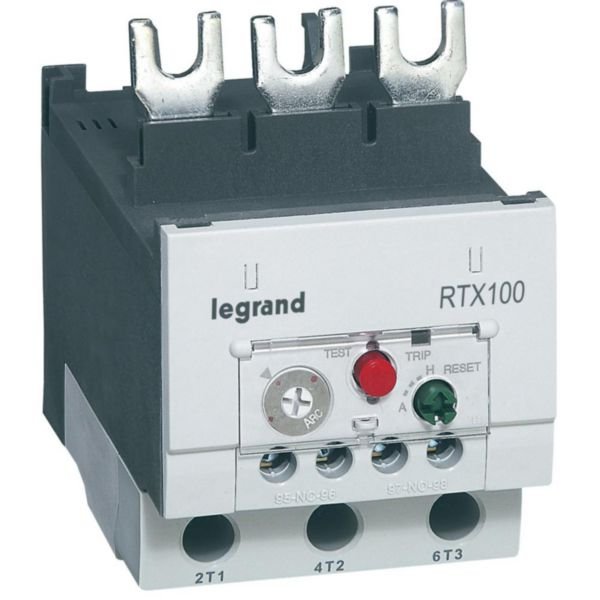

Thermal Overload Relay RTX3 100 | 28-40A Adjustable Range | Class 10A | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 416725
$281.70 List price: $351.00
1 EA ($281.70 per EA)
+ −
30 Days Return Delivery Options
The Thermal Overload Relay RTX3 100 is designed for reliable motor protection, featuring an adjustable current range of 28-40A and a Class 10A release. Ideal for tertiary and industrial applications, this relay ensures optimal performance with its automatic/manual reset options and trip indicator, making it essential for safe motor control.
Technical Specifications
  • Adjustable current range: 28-40 A
  • Max rated operation voltage (Ue): 690 V
  • Mounting method: Direct attachment
  • Type of electrical connection: Screw connection
  • Auxiliary contacts: 1 normally closed (NC), 1 normally open (NO)
  • Release class: Class 10
  • Reset button selector: Automatic or manual reset
  • Trip indicator and Stop/Test button included
  • Dimensions (H x L x W): 80mm x 70mm x 45mm
  • Weight: 0.3 kg
Key Features
  • Adjustable current range from 28 to 40 A
  • 1NO + 1NC auxiliary contacts (0.75A / 240V AC - 15)
  • Screw terminals capacity: Power 4mm² to 10mm², Auxiliary circuit 1mm²
  • Reset button selector with automatic or manual reset options
  • Trip indicator and Stop/Test button
  • Direct attachment mounting method
  • Designed for tertiary and industrial installations
Professional Installation Requirements
  • Installation by a qualified electrician is required to ensure compliance with safety standards and proper integration with motor control systems.
Applications
  • Tertiary and industrial motor control and protection
  • Direct association with CTX3 contactors
  • Motor overload protection in industrial installations
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Helps prevent motor damage and energy waste by providing precise overload protection
  • Durable design reduces need for frequent replacements, minimizing waste
Warranty Information

Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.

Available Now

The Legrand Thermal Overload Relay RTX3 100 28-40A Class 10A is available for immediate purchase, ideal for industrial motor protection applications.
