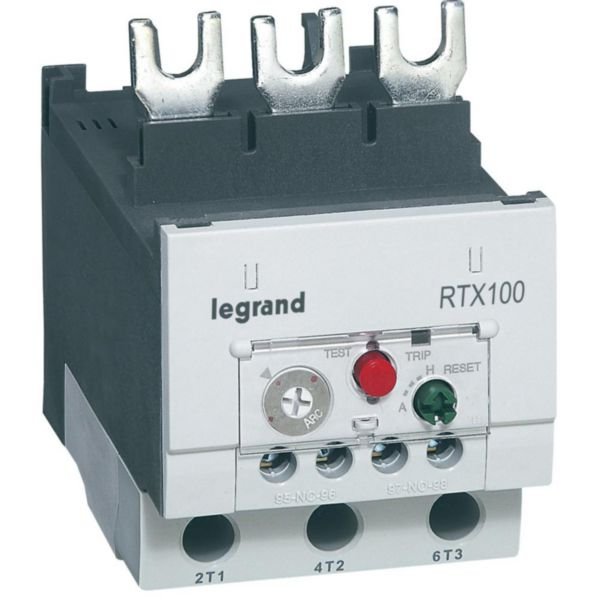

Thermal Overload Relay RTX3 100 | 34-50A Adjustable Range | Class 10A | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 100 is designed for reliable motor protection, featuring an adjustable current range of 34-50A and a Class 10A release. Ideal for industrial motor control applications, it includes a trip indicator and options for automatic or manual reset, ensuring optimal performance and safety in electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 100 | 34-50A Adjustable Range | Class 10A | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416726
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, RTX3 Overload Relay, Legrand Motor Relay
Technical Specifications
- Adjustable current range: 34-50 A
- Max rated operation voltage (Ue): 690 V
- Mounting method: Direct attachment
- Type of electrical connection: Screw connection
- Auxiliary contacts: 1 NO + 1 NC (0.75A / 240V AC - 15)
- Release class: CLASS 10
- Reset button selector: Automatic or manual reset
- Trip indicator and Stop/Test button included
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- Adjustable current range from 34 to 50 A
- 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts
- Screw terminals capacity: Power 10mm², Auxiliary circuit 1mm²
- Reset button selector with automatic or manual reset options
- Trip indicator and Stop/Test button for easy operation
- Direct attachment mounting method
- Screw connection for main circuit electrical connection
- Release class: CLASS 10
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure correct setup and compliance with safety standards.
Applications
- Industrial motor control and protection
- Tertiary and industrial electrical installations
- Direct association with CTX3 contactors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Supports longer motor lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty policy for details.
Available Now
Legrand Thermal Overload Relay RTX3 100 34-50A Class 10A is available for immediate purchase, ideal for industrial motor control and protection applications.
