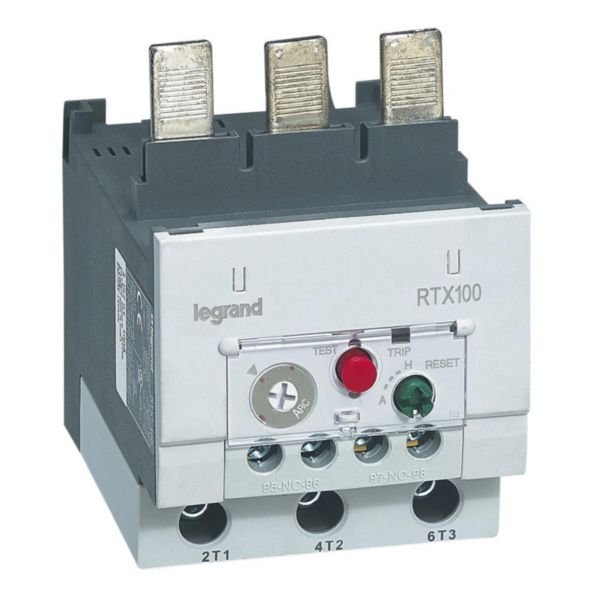

Thermal Overload Relay RTX3 100 | 45-65A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 100 is designed for reliable motor protection, featuring an adjustable current range of 45-65A and a Class 10A differential. Ideal for industrial motor control applications, this relay ensures precise overload protection, helping to prevent motor damage and extend lifespan. With easy installation and compliance with safety standards, it's perfect for qualified electricians and industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 100 | 45-65A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416747
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, RTX3 Overload Relay, Legrand Motor Relay
Technical Specifications
- Adjustable current range: 45-65 A
- Max rated operation voltage (Ue): 690 V
- Auxiliary contacts: 1 normally open (NO) + 1 normally closed (NC)
- Auxiliary contact rating: 0.75A / 240V AC
- Mounting method: Direct attachment
- Main circuit electrical connection: Screw connection
- Release class: CLASS 10
- Cage terminals capacity: Power 10mm² / Auxiliary circuit 1mm²
- Dimensions (H x L x W): 90mm x 100mm x 60mm
- Weight: 0.3 kg
Key Features
- Adjustable current range from 45 to 65 A
- 1NO + 1NC auxiliary contacts (0.75A / 240V AC - 15)
- Reset button selector with automatic or manual reset options
- Trip indicator and Stop/Test button for easy operation
- Direct attachment mounting method
- Screw connection for main circuit electrical connection
- Release class: CLASS 10
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with motor control and protection devices to ensure compliance with safety standards.
Applications
- Industrial motor control and protection
- Tertiary and industrial electrical installations
- Direct association with CTX3 contactors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Supports longer motor lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies, typically 1 year against manufacturing defects.
Available Now
The Legrand Thermal Overload Relay RTX3 100 45-65A Class 10A Differential is available for immediate purchase, ideal for industrial motor protection and control applications.
