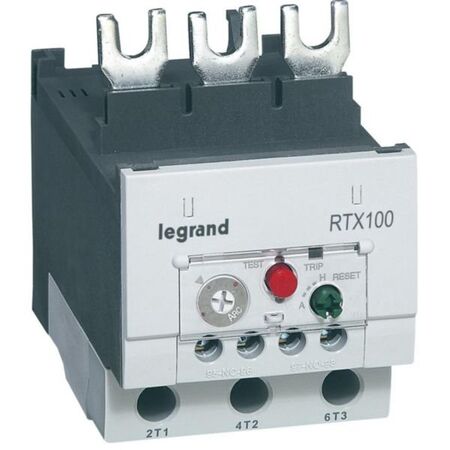

Thermal Overload Relay RTX3 100 | 54-75A Adjustable Range | Class 10A | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 100 is designed for effective motor protection, featuring an adjustable current range of 54-75A and a Class 10A release. Ideal for tertiary and industrial applications, it ensures reliable operation with automatic or manual reset options and includes a trip indicator for easy monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Adjustable current range: 54-75 A
- Max rated operation voltage (Ue): 690 V
- Mounting method: Direct attachment
- Type of electrical connection: Screw connection
- Auxiliary contacts: 1 normally open (NO), 1 normally closed (NC)
- Release class: Class 10
- Reset button selector: Automatic or manual reset
- Trip indicator and Stop/Test button included
- Dimensions (H x L x W): 90mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- Adjustable current range from 54 to 75 A
- 1NO + 1NC auxiliary contacts (0.75A / 240V AC - 15)
- Screw terminals capacity: Power 16mm² to 25mm², Auxiliary circuit 1mm²
- Reset button selector with automatic or manual reset options
- Trip indicator and Stop/Test button for easy operation
- Direct attachment mounting method
- Designed specifically for tertiary and industrial installations
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure correct setup and compliance with safety standards.
Applications
- Tertiary and industrial motor control and protection
- Direct association with CTX3 contactors
- Motor overload protection in industrial electrical installations
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Supports longer motor lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Legrand Thermal Overload Relay RTX3 100 54-75A Class 10A is available for immediate purchase, ideal for industrial motor control and protection applications.
