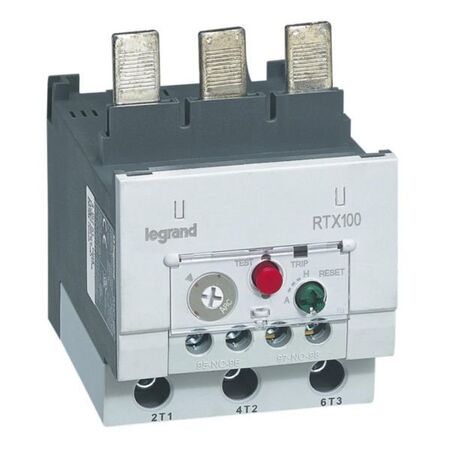

Thermal Overload Relay RTX3 100 54-75A Differential Grey Legrand

BRAND: Legrand
SKU: 416748
$367.10 List price: $457.40
1 EA ($367.10 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
Legrand thermal overload relay features 54-75 A adjustable current range and 690 V max rated operation voltage (ue).
Technical Specifications
  • Adjustable current range: 54-75 A
  • Max rated operation voltage (Ue): 690 V
  • Mounting method: Direct attachment
  • Type of electrical connection: Screw connection
  • Number of auxiliary contacts (normally closed): 1
  • Number of auxiliary contacts (normally open): 1
  • Release class: CLASS 10
  • Auxiliary contact rating: 0.75A / 240V AC - 15
  • Cage terminals capacity: Power 16mm² to 25mm², Auxiliary circuit 1mm²
  • Dimensions (H x L x W): 90mm x 70mm x 45mm
  • Weight: 0.3 kg
Key Features
  • 1NO + 1NC auxiliary contact (0.75A / 240V AC - 15)
  • Cage terminals capacity: Power 16mm² to 25mm², Auxiliary circuit 1mm²
  • Reset button selector with automatic or manual reset
  • Trip indicator and Stop/Test button
  • Adjustable current range from 54 to 75 A
  • Max rated operation voltage of 690 V
  • Direct attachment mounting method
  • Screw connection for main circuit electrical connection
  • Release class: CLASS 10
Professional Installation Requirements
  • Professional installation by a qualified electrician or technician is required to ensure correct setup and safety compliance.
Applications
  • Tertiary and industrial motor control and protection
  • Direct association with CTX3 contactors
  • Motor overload protection in industrial installations
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Helps prevent motor damage and energy waste by providing precise overload protection
  • Supports longer motor lifespan reducing electronic waste
Warranty Information

Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.

Available Now

The Legrand Thermal Overload Relay RTX3 100 54-75A Class 10A Differential is available for immediate purchase, ideal for industrial motor control and protection applications.
