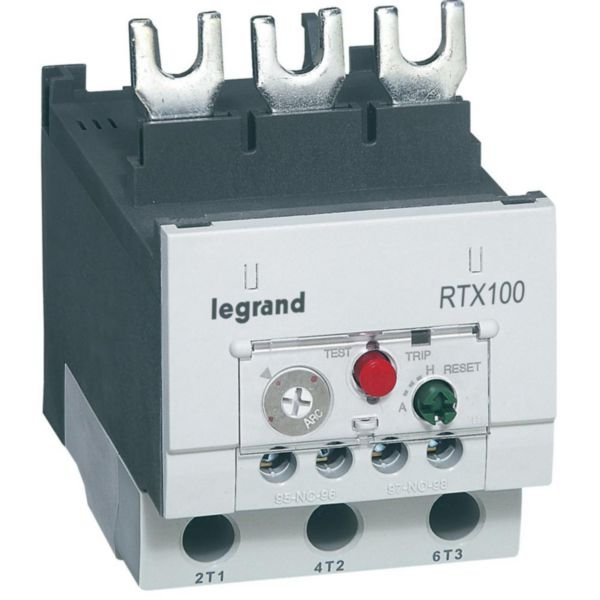

Thermal Overload Relay RTX3 100 | 63-85A Adjustable Range | Class 10A | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 416729
$281.70 List price: $351.00
1 EA ($281.70 per EA)
+ −
30 Days Return Delivery Options
The Thermal Overload Relay RTX3 100 is designed for effective motor protection, featuring an adjustable current range of 63-85A and a maximum rated operation voltage of 690V. Ideal for industrial applications, this relay ensures reliable overload protection with its automatic/manual reset options and trip indicator, making it a must-have for motor control systems.
Technical Specifications
  • Adjustable current range: 63-85 A
  • Max rated operation voltage (Ue): 690 V
  • Mounting method: Direct attachment
  • Type of electrical connection: Screw connection
  • Auxiliary contacts: 1 normally closed (NC), 1 normally open (NO)
  • Release class: CLASS 10
  • Reset button selector: Automatic or manual reset
  • Trip indicator and Stop/Test button included
  • Dimensions (H x L x W): 90mm x 70mm x 45mm
  • Weight: 0.3 kg
Key Features
  • 1NO + 1NC auxiliary contact (0.75A / 240V AC - 15)
  • Screw terminals capacity: Power 16mm² to 25mm², Auxiliary circuit 1mm²
  • Reset button selector with automatic or manual reset options
  • Trip indicator and Stop/Test button
  • Direct attachment mounting method
  • Adjustable current range from 63 to 85 A
  • Max rated operation voltage 690 V
  • Release class: CLASS 10
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure proper integration with motor control systems and compliance with safety standards.
Applications
  • Tertiary and industrial motor control and protection
  • Direct association with CTX3 contactors
  • Motor overload protection in industrial installations
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Helps prevent motor damage and energy waste by providing precise overload protection
  • Supports longer motor lifespan reducing electronic waste
Warranty Information

Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.

Available Now

Legrand Thermal Overload Relay RTX3 100 63-85A Class 10A is available for immediate purchase, ideal for industrial motor protection applications.
