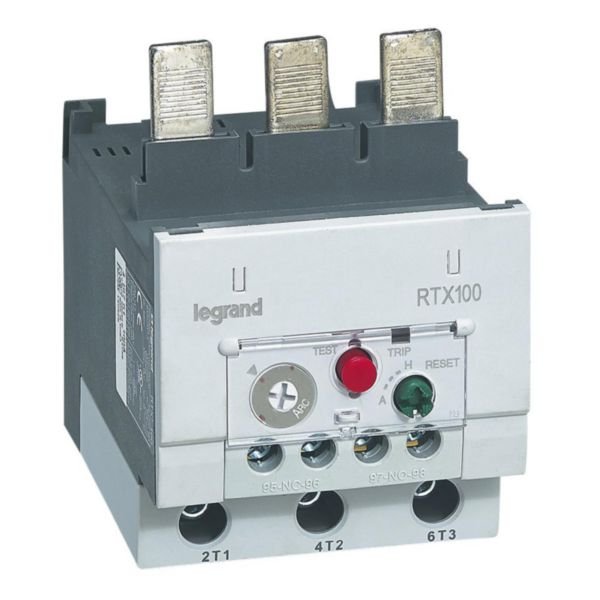

Thermal Overload Relay RTX3 100 | 63-85A Adjustable Range | Class 10A | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 100 is designed for motor protection, featuring an adjustable current range of 63-85A and a maximum rated operation voltage of 690V. Ideal for industrial applications, this relay ensures reliable overload protection with a direct attachment mounting method and includes a trip indicator and reset button for enhanced functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 100 | 63-85A Adjustable Range | Class 10A | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416749
Alternatively Known As: Thermal Overload Relay RTX3, Motor Protection Relay, Overload Relay 63-85A, Legrand RTX3 Relay
Technical Specifications
- Adjustable current range: 63-85 A
- Max rated operation voltage (Ue): 690 V
- Mounting method: Direct attachment
- Type of electrical connection: Screw connection
- Number of auxiliary contacts normally closed (NC): 1
- Number of auxiliary contacts normally open (NO): 1
- Number of auxiliary change-over contacts: 0
- Release class: CLASS 10
- Auxiliary contact rating: 0.75A / 240V AC - 15
- Cage terminals capacity: Power 16mm² to 25mm², Auxiliary circuit 1mm²
- Reset button selector: Automatic or manual reset
- Includes trip indicator and Stop/Test button
- Dimensions (H x L x W): 90mm x 110mm x 60mm
- Weight: 0.5 kg
Key Features
- 1NO + 1NC auxiliary contact (0.75A / 240V AC - 15)
- Cage terminals capacity: Power 16mm² to 25mm² / Auxiliary circuit 1mm²
- Reset button selector with automatic or manual reset
- Trip indicator and Stop/Test button
- Direct attachment mounting method
- Screw connection for main circuit
- Adjustable current range from 63 to 85 A
- Max rated operation voltage 690 V
- Release class: CLASS 10
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure correct setup and compliance with safety standards.
Applications
- Tertiary and industrial motor control and protection
- Direct association with CTX3 contactors
- Motor overload protection in industrial installations
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty policy for details.
Available Now
The Legrand Thermal Overload Relay RTX3 100 63-85A Class 10A Differential is available for immediate purchase, ideal for industrial motor control and protection applications.
