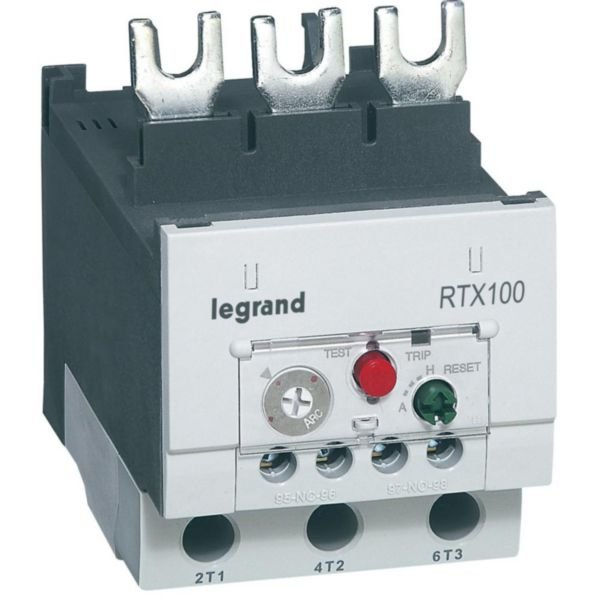

Thermal Overload Relay RTX3 100 | 70-95A Adjustable Range | Class 10A | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 416730
$281.70 List price: $351.00
+ −
30 Days Return Delivery Options
The Thermal Overload Relay RTX3 100 is designed for reliable motor protection, featuring an adjustable current range of 70-95A and a maximum rated operation voltage of 690V. Ideal for industrial applications, this relay ensures precise overload protection, helping to extend motor life and reduce maintenance needs. With direct attachment mounting and a trip indicator, it's perfect for professional installations.

Product Name/Title: Thermal Overload Relay RTX3 100 | 70-95A Adjustable Range | Class 10A | @EA of 1 | by Legrand

Brand: Legrand

SKU: 416730

Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, RTX3 Overload Relay, Legrand Motor Relay

Technical Specifications
  • Adjustable current range: 70-95 A
  • Max rated operation voltage (Ue): 690 V
  • Mounting method: Direct attachment
  • Type of electrical connection: Screw connection
  • Number of auxiliary contacts (normally closed): 1
  • Number of auxiliary contacts (normally open): 1
  • Number of auxiliary contacts (change-over): 0
  • Release class: CLASS 10
  • Auxiliary contact rating: 0.75A / 240V AC - 15
  • Screw terminal capacity: Power 25mm² to 35mm², Auxiliary circuit 1mm²
  • Dimensions (H x L x W): 90mm x 70mm x 45mm
  • Weight: 0.5 kg
Key Features
  • 1NO + 1NC auxiliary contact (0.75A / 240V AC - 15)
  • Screw terminals capacity: Power 25mm² to 35mm², Auxiliary circuit 1mm²
  • Reset button selector with automatic or manual reset options
  • Trip indicator and Stop/Test button
  • Direct attachment mounting method
  • Adjustable current range from 70 to 95 A
  • Max rated operation voltage of 690 V
  • Release class: CLASS 10
Professional Installation Requirements
  • Installation should be performed by a qualified electrician familiar with motor control and protection devices to ensure compliance with safety standards.
Applications
  • Industrial motor control and protection
  • Tertiary and industrial electrical installations
  • Direct association with CTX3 contactors
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Helps prevent motor damage and energy waste by providing precise overload protection
  • Supports longer motor life and reduces maintenance needs
Warranty Information

Standard manufacturer warranty applies. Please refer to Legrand for specific warranty terms.

Available Now

The Legrand Thermal Overload Relay RTX3 100 70-95A Class 10A is available for immediate purchase, ideal for industrial motor protection applications.
