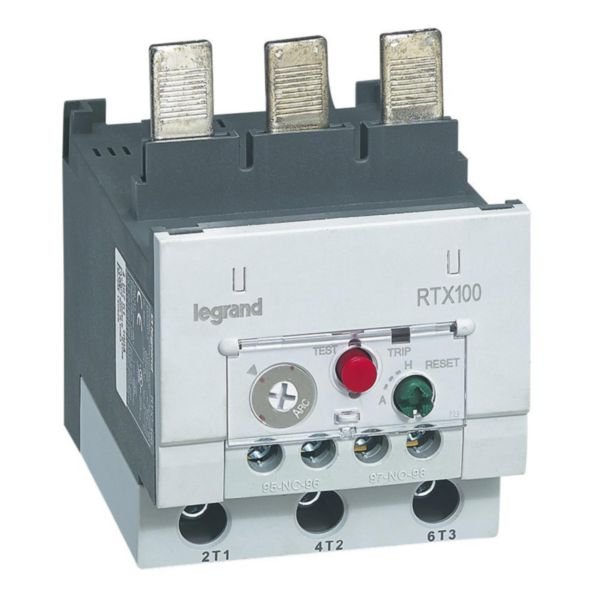

Thermal Overload Relay RTX3 100 | 70-95A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 100 is designed for reliable motor protection, featuring an adjustable current range from 70 to 95A and a Class 10A differential. Ideal for industrial motor control applications, it includes a reset button selector for automatic or manual reset, ensuring optimal performance and safety in electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 100 | 70-95A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416750
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, RTX3 Thermal Relay, Legrand Motor Relay
Technical Specifications
- Adjustable current range: 70-95 A
- Max rated operation voltage (Ue): 690 V
- Number of auxiliary contacts normally closed (NC): 1
- Number of auxiliary contacts normally open (NO): 1
- Number of auxiliary contacts change-over: 0
- Mounting method: Direct attachment
- Type of electrical connection of main circuit: Screw connection
- Auxiliary contact rating: 0.75A / 240V AC - 15
- Cage terminals capacity: Power 25mm² to 35mm² / Aux. Circuit 1mm²
- Release class: CLASS 10
- Reset button selector: Automatic or manual reset
- Trip indicator and Stop/Test button included
- Dimensions (H x L x W): 90mm x 100mm x 60mm
- Weight: 0.5 kg
Key Features
- Adjustable current range from 70 to 95 A
- 1NO + 1NC auxiliary contacts (0.75A / 240V AC - 15)
- Reset button selector with automatic or manual reset
- Trip indicator and Stop/Test button
- Direct attachment mounting method
- Screw connection for main circuit electrical connection
- Release class: CLASS 10
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with motor control and protection devices to ensure compliance with safety standards and proper operation.
Applications
- Industrial motor control and protection
- Tertiary and industrial electrical installations
- Direct association with CTX3 contactors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Supports longer motor lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty policy for details.
Available Now
The Legrand Thermal Overload Relay RTX3 100 70-95A Class 10A Differential is available for immediate purchase, ideal for industrial motor protection and control applications.
