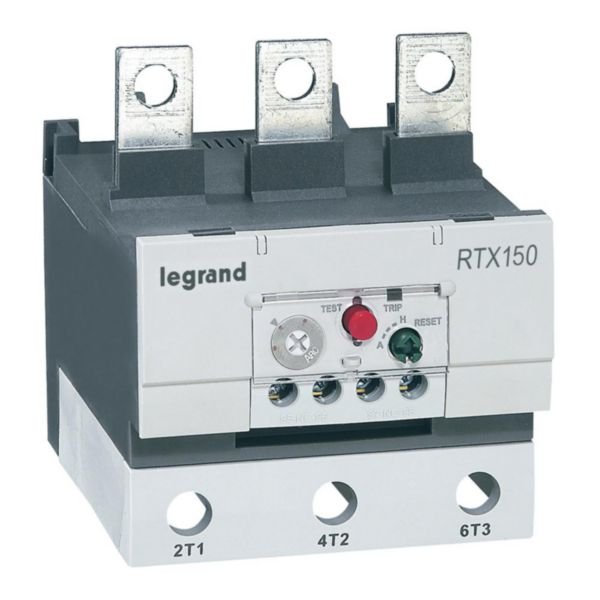

Thermal Overload Relay RTX3 150 | 45-65A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 150 is designed for reliable motor protection, featuring an adjustable current range of 45-65A and a maximum rated operation voltage of 690V. Ideal for industrial applications, this relay includes a trip indicator and a reset button selector for enhanced safety and functionality. With direct attachment mounting and screw connection, it ensures easy installation and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 150 | 45-65A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416770
Alternatively Known As: Thermal Overload Relay RTX3, Motor Protection Relay, Overload Relay 45-65A, Legrand RTX3 Relay
Technical Specifications
- Adjustable current range: 45-65 A
- Max rated operation voltage (Ue): 690 V
- Auxiliary contacts: 1 normally open (NO) + 1 normally closed (NC)
- Auxiliary contact rating: 0.75A / 240V AC
- Mounting method: Direct attachment
- Main circuit electrical connection: Screw connection
- Release class: CLASS 10
- Cage terminals capacity: Power 10mm², Auxiliary circuit 1mm²
- Reset button selector: Automatic or manual reset
- Includes trip indicator and Stop/Test button
- Dimensions (H x L x W): 90mm x 75mm x 45mm
- Weight: 0.3 kg
Key Features
- 1NO + 1NC auxiliary contact (0.75A / 240V AC - 15)
- Cage terminals capacity: Power 10mm² / Auxiliary circuit 1mm²
- Reset button selector with automatic or manual reset
- Trip indicator and Stop/Test button
- Adjustable current range from 45 to 65 A
- Max rated operation voltage of 690 V
- Direct attachment mounting method
- Screw connection for main circuit electrical connection
- Release class: CLASS 10
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure correct setup and compliance with safety standards.
Applications
- Tertiary and industrial motor control and protection
- Direct association with CTX3 contactors
- Motor overload protection in industrial electrical installations
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Supports longer motor lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Thermal Overload Relay RTX3 150 45-65A Class 10A Differential is available for immediate purchase, ideal for industrial motor control and protection applications.
