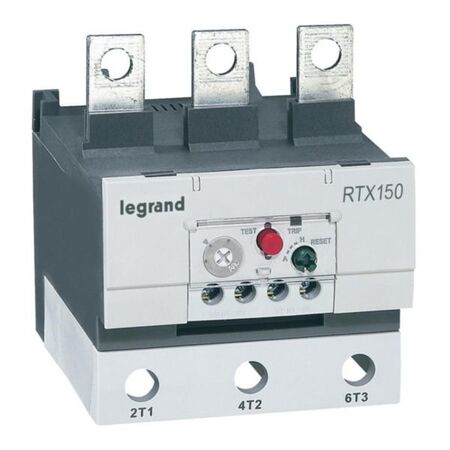

Thermal Overload Relay RTX3 150 63-85A Differential Grey Legrand

BRAND: Legrand
SKU: 416772
$560.90 List price: $699.00
1 EA ($560.90 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
Legrand thermal overload relay features 63-85 A adjustable current range and 690 V max rated operation voltage (ue), Differential type.
Technical Specifications
  • Adjustable current range: 63-85 A
  • Max rated operation voltage (Ue): 690 V
  • Mounting method: Direct attachment
  • Type of electrical connection: Screw connection
  • Number of auxiliary contacts (normally closed): 1
  • Number of auxiliary contacts (normally open): 1
  • Number of auxiliary contacts (change-over): 0
  • Release class: CLASS 10
  • Auxiliary contact rating: 0.75A / 240V AC - 15
  • Cage terminals capacity: Power 25mm² / Auxiliary circuit 1mm²
  • Dimensions (H x L x W): 90mm x 100mm x 60mm
  • Weight: 0.5 kg
Key Features
  • 1NO + 1NC auxiliary contact (0.75A / 240V AC - 15)
  • Cage terminals capacity: Power 25mm² / Auxiliary circuit 1mm²
  • Reset button selector with automatic or manual reset
  • Trip indicator and Stop/Test button
  • Direct attachment mounting method
  • Screw connection for main circuit electrical connection
  • Adjustable current range from 63 to 85 A
  • Max rated operation voltage of 690 V
  • Release class: CLASS 10
Professional Installation Requirements
  • Installation should be performed by a qualified electrician familiar with motor control and protection devices to ensure compliance with safety standards and optimal performance.
Applications
  • Industrial motor control and protection
  • Tertiary and industrial electrical installations
  • Direct association with CTX3 contactors
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Helps prevent motor damage and energy waste by providing precise overload protection
  • Supports energy-efficient motor operation by reducing downtime and maintenance
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand warranty policy for details.

Available Now

Legrand Thermal Overload Relay RTX3 150 63-85A Class 10A Differential is available for immediate purchase, ideal for industrial motor control and protection applications.

F01992FR-02 (F01992FR-02.pdf, 1,434 Kb) [Download]

F01992EN-02 (F01992EN-02.pdf, 1,921 Kb) [Download]

Technical Guide: Protection and control of 3-phase asynchronous motors (EXB19046_TG_3phase-asynchronous-motors_EN.pdf, 5,963 Kb) [Download]

ex223001_0294-0295 (ex223001_0294-0295.pdf, 754 Kb) [Download]

ex223001_0292-0293 (ex223001_0292-0293.pdf, 607 Kb) [Download]

ex223001_0284 (ex223001_0284.pdf, 76 Kb) [Download]
