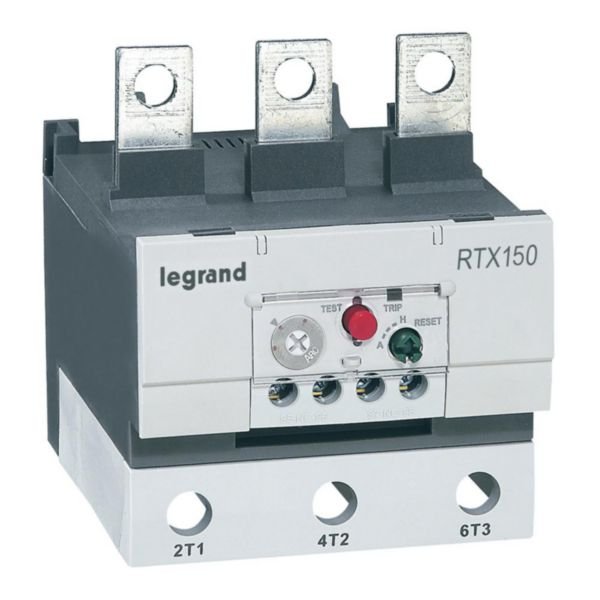

Thermal Overload Relay RTX3 150 | 70-95A Adjustable Range | Class 10A | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 150 is designed for reliable motor protection with an adjustable current range of 70-95A and a maximum rated operation voltage of 690V. Ideal for tertiary and industrial installations, it features a trip indicator, manual/automatic reset options, and direct attachment mounting for easy integration with motor control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Adjustable current range: 70-95 A
- Max rated operation voltage (Ue): 690 V
- Mounting method: Direct attachment
- Type of electrical connection: Screw connection
- Number of auxiliary contacts (normally closed): 1
- Number of auxiliary contacts (normally open): 1
- Release class: CLASS 10
- Auxiliary contact rating: 0.75A / 240V AC - 15
- Dimensions (H x L x W): 90mm x 75mm x 45mm
- Weight: 0.5 kg
Key Features
- 1NO + 1NC auxiliary contact (0.75A / 240V AC - 15)
- Screw terminals capacity: Power 35mm² / Auxiliary circuit 1mm²
- Reset button selector with automatic or manual reset options
- Trip indicator and Stop/Test button for easy operation
- Direct attachment mounting method
- Adjustable current range from 70 to 95 A
- Max rated operation voltage of 690 V
- Designed for tertiary and industrial installations
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with safety standards and proper integration with motor control systems.
Applications
- Tertiary and industrial motor control and protection installations
- Direct association with CTX3 contactors for motor protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent motor damage and energy waste by providing reliable overload protection
- Supports energy-efficient motor operation by ensuring proper motor protection
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty policy for details.
Available Now
The Legrand Thermal Overload Relay RTX3 150 70-95A Class 10A is available now for immediate purchase. Ideal for tertiary and industrial motor control and protection applications.
