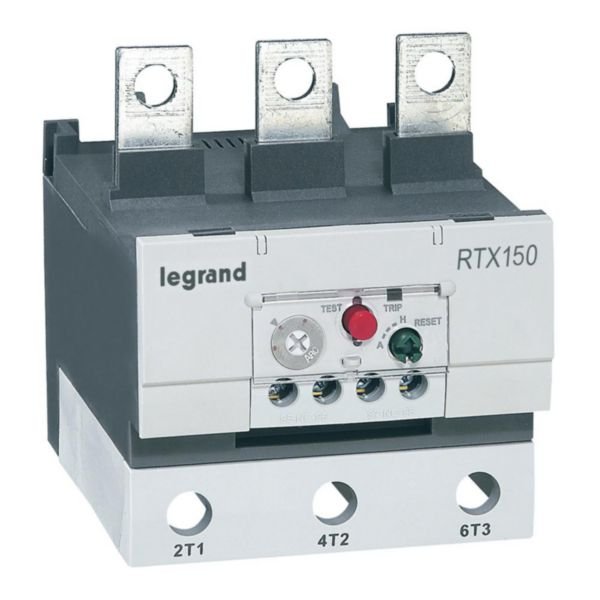

Thermal Overload Relay RTX3 150 | 80-100A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 150 is designed for reliable motor protection, featuring an adjustable current range of 80-100A and a maximum rated operation voltage of 690V. Ideal for industrial applications, this relay ensures efficient motor operation and prevents damage, making it a must-have for electrical installations and motor control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 150 | 80-100A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416774
Alternatively Known As: Thermal Overload Relay RTX3, Motor Protection Relay, Overload Relay 80-100A, Legrand RTX3 Relay
Technical Specifications
- Adjustable current range: 80-100 A
- Max rated operation voltage (Ue): 690 V
- Number of auxiliary contacts (normally closed): 1
- Number of auxiliary contacts (normally open): 1
- Mounting method: Direct attachment
- Type of electrical connection: Screw connection
- Release class: CLASS 10
- Auxiliary contact rating: 0.75A / 240V AC - 15
- Cage terminals capacity: Power 50mm² / Auxiliary circuit 1mm²
- Dimensions (H x L x W): 100mm x 120mm x 70mm
- Weight: 0.5 kg
Key Features
- 1NO + 1NC auxiliary contact (0.75A / 240V AC - 15)
- Cage terminals capacity: Power 50mm² / Auxiliary circuit 1mm²
- Reset button selector with automatic or manual reset
- Trip indicator and Stop/Test button
- Direct attachment mounting method
- Screw connection for main circuit electrical connection
- Adjustable current range from 80 to 100 A
- Max rated operation voltage of 690 V
- Release class: CLASS 10
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with safety standards and proper integration with motor control systems.
Applications
- Industrial motor control and protection
- Tertiary and industrial electrical installations
- Direct association with CTX3 contactors
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent motor damage and energy waste by providing reliable overload protection
- Supports efficient motor operation and reduces downtime
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty policy for details.
Available Now
Legrand Thermal Overload Relay RTX3 150 80-100A Class 10A Differential is available for immediate purchase, ideal for industrial motor protection applications.
