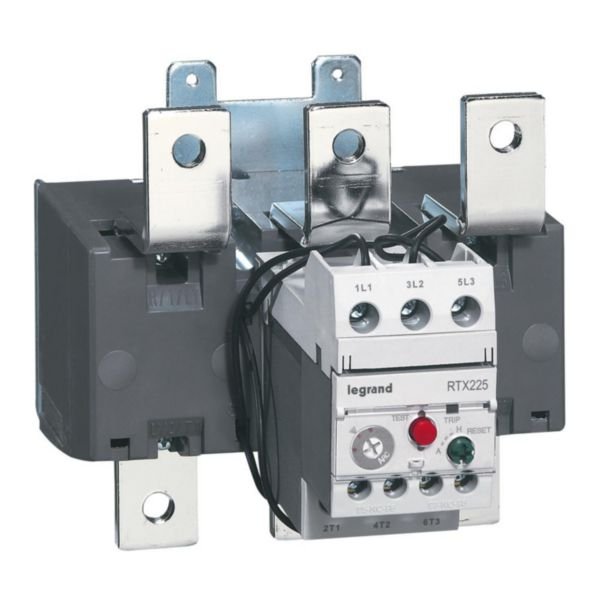

Thermal Overload Relay RTX3 225 | 85-125A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 225 is designed for reliable motor protection, featuring an adjustable current range of 85-125A and a maximum rated operation voltage of 690V. Ideal for industrial motor control applications, it includes a trip indicator and a reset button for enhanced functionality, ensuring efficient operation and reduced downtime.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 225 | 85-125A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416781
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, RTX3 Thermal Relay, Legrand Motor Relay
Technical Specifications
- Adjustable current range: 85-125 A
- Max rated operation voltage (Ue): 690 V
- Auxiliary contacts: 1 normally open (NO) + 1 normally closed (NC)
- Screw terminals capacity: Power 50mm², Auxiliary circuit 1mm²
- Mounting method: Direct attachment
- Main circuit electrical connection: Screw connection
- Release class: CLASS 10
- Reset button selector: Automatic or manual reset
- Includes trip indicator and Stop/Test button
- Dimensions (H x L x W): 90mm x 110mm x 70mm
- Weight: 0.5 kg
Key Features
- 1NO + 1NC auxiliary contact (0.75A / 240V AC - 15)
- Screw terminals capacity: Power 50mm² / Auxiliary circuit 1mm²
- Mountable independently on fixing plate
- Reset button selector with automatic or manual reset
- Trip indicator and Stop/Test button
- Adjustable current range from 85 to 125 A
- Max rated operation voltage 690 V
- Direct attachment mounting method
- Screw connection for main circuit
- Release class: CLASS 10
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with motor control and protection devices to ensure compliance with safety standards and correct operation.
Applications
- Industrial motor control and protection
- Tertiary and industrial electrical installations
- Direct association with CTX3 contactors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent motor damage and energy waste by providing reliable overload protection
- Supports efficient motor operation and reduces downtime
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years. Refer to Legrand for specific warranty details.
Available Now
The Legrand Thermal Overload Relay RTX3 225 85-125A Class 10A Differential is available for immediate purchase, ideal for industrial motor control and protection applications.
