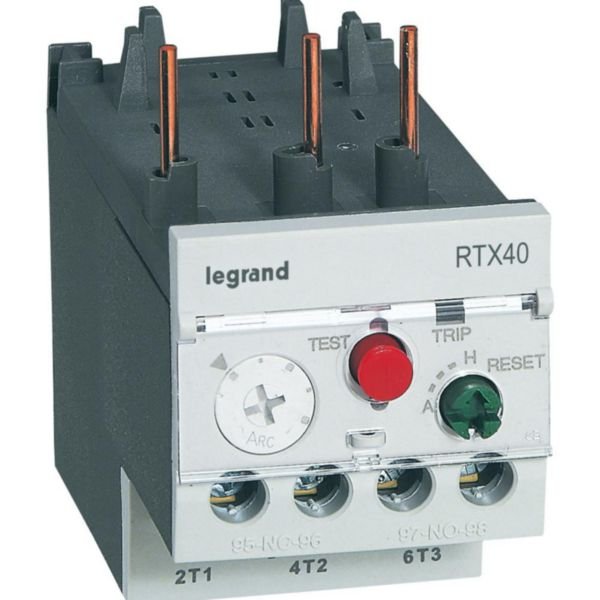

Thermal Overload Relay RTX3 40 | 0.4-0.63A Adjustable Range | Class 10A | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 40 is designed for precise motor protection with an adjustable current range of 0.4-0.63A and a maximum rated operation voltage of 690V. Ideal for industrial motor control applications, it features a reset button selector for automatic or manual reset, ensuring reliable operation and safety compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 40 | 0.4-0.63A Adjustable Range | Class 10A | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416663
Alternatively Known As: Thermal Overload Relay RTX3, Motor Protection Relay, Overload Relay 0.4-0.63A, Class 10A Thermal Relay
Technical Specifications
- Adjustable current range: 0.4-0.63 A
- Max rated operation voltage (Ue): 690 V
- Mounting method: Direct attachment
- Type of electrical connection: Screw connection
- Auxiliary contacts: 1 normally closed (NC), 1 normally open (NO)
- Release class: CLASS 10
- Reset button selector: Automatic or manual reset
- Trip indicator and Stop/Test button included
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.2 kg
Key Features
- 1NO + 1NC auxiliary contact (0.75A / 240V AC - 15)
- Screw terminals capacity: Power 1mm² / Aux. Circuit 1mm²
- Reset button selector with automatic or manual reset
- Trip indicator and Stop/Test button
- Direct attachment mounting method
- Adjustable current range from 0.4 to 0.63 A
- Max rated operation voltage 690 V
- Release class: CLASS 10
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure correct setup and safety compliance.
Applications
- Tertiary and industrial motor control and protection
- Direct association with CTX3 contactors
- Motor overload protection in industrial automation systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Supports longer motor lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty terms for details.
Available Now
The Legrand Thermal Overload Relay RTX3 40 0.4-0.63A Class 10A Differential is available for immediate purchase, ideal for industrial motor control and protection applications.
