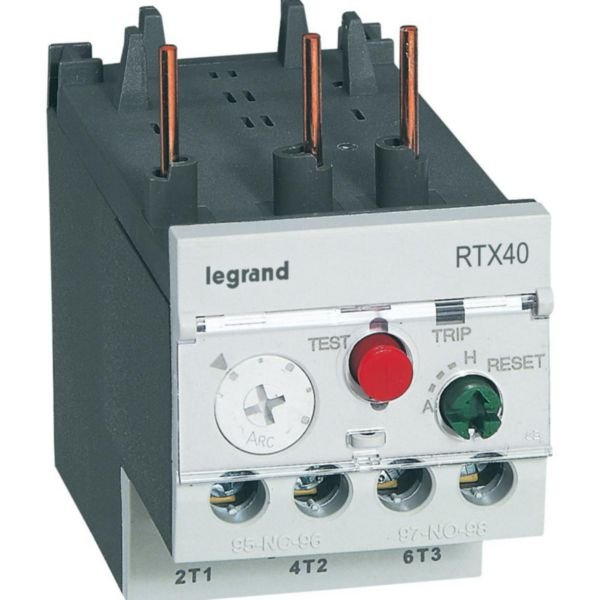

Thermal Overload Relay RTX3 40 | 7-10A Adjustable Range | Class 10A | Direct Attachment | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 40 is designed for reliable motor protection, featuring an adjustable current range of 7-10A and Class 10A release. Ideal for industrial automation, it ensures optimal performance with screw terminals and auxiliary contacts. This relay helps prevent motor damage and energy waste, making it a perfect choice for motor control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Adjustable current range: 7-10 A
- Max rated operation voltage (Ue): 690 V
- Mounting method: Direct attachment
- Type of electrical connection: Screw connection
- Auxiliary contacts: 1 normally closed (NC), 1 normally open (NO)
- Release class: Class 10
- Auxiliary contact rating: 0.75A / 240V AC
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.2 kg
Key Features
- Adjustable current range from 7 to 10 A
- 1NO + 1NC auxiliary contacts (0.75A / 240V AC)
- Screw terminals for power and auxiliary circuits
- Reset button selector with automatic or manual reset
- Trip indicator and Stop/Test button
- Direct attachment mounting method
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Tertiary and industrial motor control and protection
- Direct association with CTX3 contactors
- Motor overload protection in industrial automation systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Supports longer motor lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Thermal Overload Relay RTX3 40 7-10A Class 10A is available for immediate purchase, ideal for industrial motor control and protection applications.
