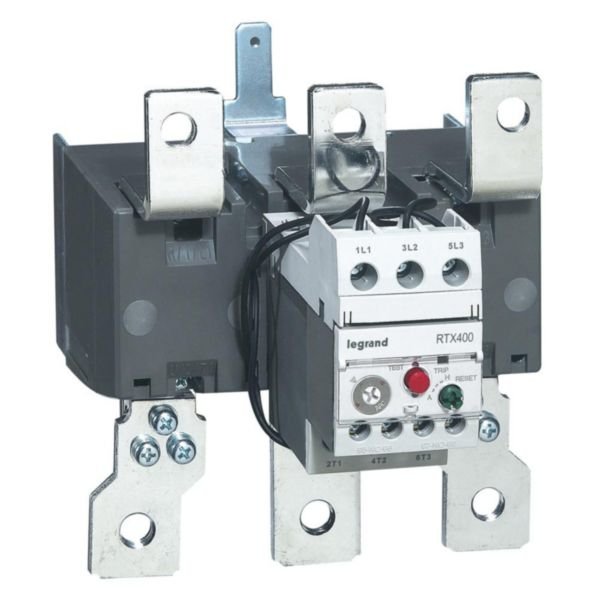

Thermal Overload Relay RTX3 400 | 160-240A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 400 is designed for reliable motor protection with an adjustable current range of 160-240A and a Class 10A differential. Ideal for industrial and tertiary applications, it features a trip indicator, automatic/manual reset options, and screw connection for easy installation. Ensure your motors are safeguarded against overloads with this durable and efficient relay.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Adjustable current range: 160-240 A
- Max rated operation voltage (Ue): 690 V
- Number of auxiliary contacts NO: 1
- Number of auxiliary contacts NC: 1
- Mounting method: Direct attachment
- Type of electrical connection: Screw connection
- Screw terminals capacity: Power 120mm², Auxiliary circuit 1mm²
- Release class: CLASS 10
- Reset button selector: Automatic or manual reset
- Includes trip indicator and Stop/Test button
- Dimensions (H x L x W): 100mm x 120mm x 70mm
- Weight: 1.5 kg
Key Features
- Adjustable current range from 160 to 240 A
- 1 normally open (NO) and 1 normally closed (NC) auxiliary contact
- Screw terminals capacity: Power 120mm², Auxiliary circuit 1mm²
- Reset button selector with automatic or manual reset options
- Trip indicator and Stop/Test button for easy operation
- Direct attachment mounting method
- Screw connection for main circuit electrical connection
- Release class: CLASS 10
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with safety standards and proper integration with motor control systems.
Applications
- Tertiary and industrial motor control and protection
- Direct association with CTX3 contactors
- Motor overload protection in industrial electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty of 1 year against defects in materials and workmanship.
Available Now
The Legrand Thermal Overload Relay RTX3 400 160-240A Class 10A Differential is available for immediate purchase, ideal for industrial and tertiary motor protection applications.
