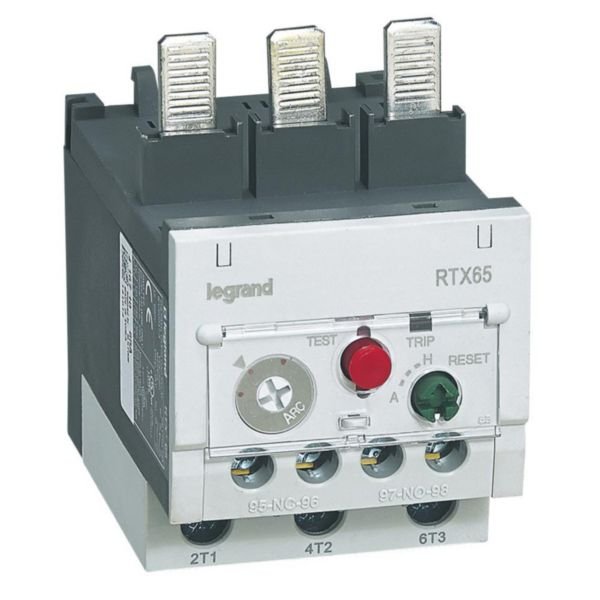

Thermal Overload Relay RTX3 65 | 12-18A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 65 is designed for reliable motor protection with an adjustable current range of 12-18A and a maximum rated operation voltage of 690V. Ideal for industrial motor control applications, this relay features a trip indicator, manual reset, and direct attachment mounting, ensuring optimal performance and safety in electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 65 | 12-18A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416704
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, RTX3 Thermal Relay, Legrand Motor Relay
Technical Specifications
- Adjustable current range: 12-18 A
- Max rated operation voltage (Ue): 690 V
- Number of auxiliary contacts (normally closed): 1
- Number of auxiliary contacts (normally open): 1
- Mounting method: Direct attachment
- Type of electrical connection: Screw connection
- Release class: CLASS 10
- Auxiliary contact rating: 0.75A / 240V AC - 15
- Cage terminals capacity: Power 2.5mm² / Auxiliary circuit 1mm²
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- 1NO + 1NC auxiliary contact (0.75A / 240V AC - 15)
- Cage terminals capacity: Power 2.5mm² / Auxiliary circuit 1mm²
- Reset button selector with automatic or manual reset
- Trip indicator and Stop/Test button
- Adjustable current range from 12 to 18 A
- Max rated operation voltage of 690 V
- Direct attachment mounting method
- Screw connection for main circuit electrical connection
- Release class: CLASS 10
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with motor control and protection systems to ensure compliance with safety standards and proper operation.
Applications
- Industrial motor control and protection
- Tertiary and industrial electrical installations
- Direct association with CTX3 contactors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent motor damage and energy waste by providing reliable overload protection
- Supports energy-efficient motor operation by ensuring proper motor protection
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Legrand Thermal Overload Relay RTX3 65 12-18A Class 10A Differential is available for immediate purchase, ideal for industrial and tertiary motor control applications.
