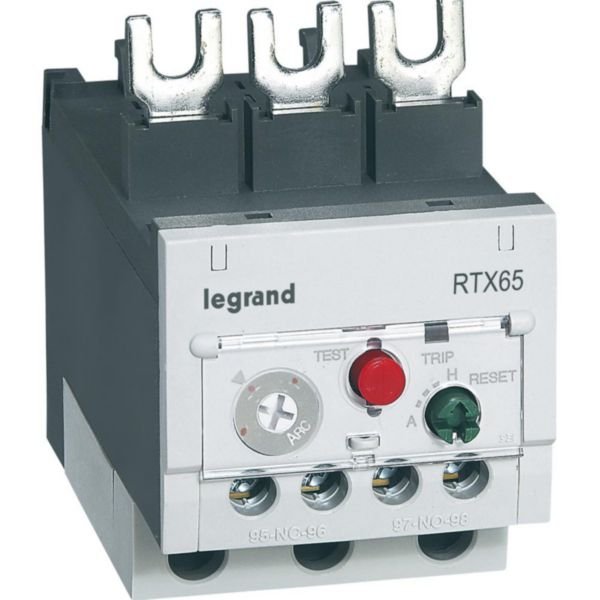

Thermal Overload Relay RTX3 65 | 16-22A Adjustable Range | Class 10A | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 65 is designed for reliable motor protection, featuring an adjustable current range of 16-22A and a maximum rated operation voltage of 690V. Ideal for industrial applications, this relay ensures safety and compliance with AS/NZS 3000 standards, making it perfect for qualified electricians and motor control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Adjustable current range: 16-22 A
- Max rated operation voltage (Ue): 690 V
- Mounting method: Direct attachment
- Type of electrical connection: Screw connection
- Auxiliary contacts: 1 normally closed (NC), 1 normally open (NO)
- Release class: CLASS 10
- Reset button selector: Automatic or manual reset
- Trip indicator and Stop/Test button included
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- 1NO + 1NC auxiliary contact (0.75A / 240V AC - 15)
- Screw terminals capacity: Power 2.5mm² to 4mm², Auxiliary circuit 1mm²
- Reset button selector with automatic or manual reset
- Trip indicator and Stop/Test button
- Direct attachment mounting method
- Adjustable current range from 16 to 22 A
- Max rated operation voltage 690 V
- Release class: CLASS 10
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with safety standards and proper integration with motor control systems.
Applications
- Industrial motor protection
- Tertiary installations
- Direct association with CTX3 contactors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies, typically 1 year against manufacturing defects.
Available Now
The Legrand Thermal Overload Relay RTX3 65 16-22A Class 10A is available for immediate purchase, ideal for industrial motor protection and tertiary installations.
