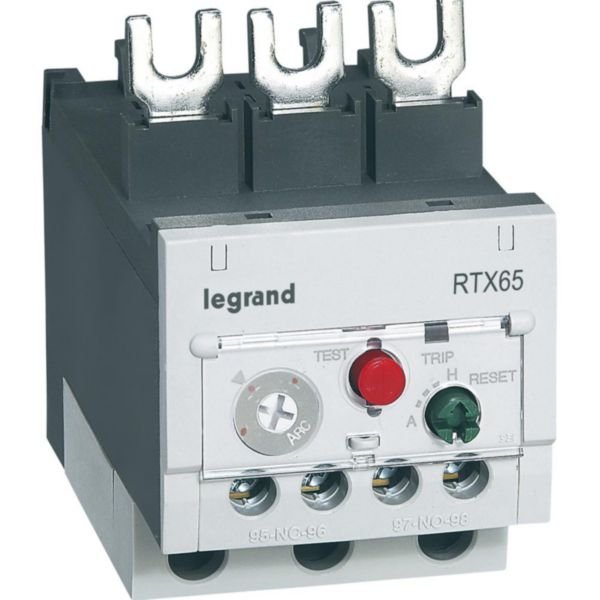

Thermal Overload Relay RTX3 65 | 22-32A Adjustable Range | Class 10A | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 65 is designed for reliable motor protection with an adjustable current range of 22-32A and Class 10A rating. Ideal for industrial and tertiary applications, it features screw terminals for easy installation and auxiliary contacts for enhanced functionality. This relay helps prevent motor damage and energy waste, ensuring a longer lifespan for your equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 65 | 22-32A Adjustable Range | Class 10A | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416687
Alternatively Known As: Motor Overload Relay, Thermal Motor Protector, RTX3 Overload Relay
Technical Specifications
- Adjustable current range: 22-32 A
- Max rated operation voltage (Ue): 690 V
- Mounting method: Direct attachment
- Type of electrical connection: Screw connection
- Auxiliary contacts: 1 normally closed (NC), 1 normally open (NO)
- Release class: CLASS 10
- Auxiliary contact rating: 0.75A / 240V AC
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- Adjustable current range from 22 to 32 A
- 1NO + 1NC auxiliary contacts (0.75A / 240V AC)
- Screw terminals capacity: Power 4mm² to 6mm², Auxiliary circuit 1mm²
- Reset button selector with automatic or manual reset options
- Trip indicator and Stop/Test button
- Direct attachment mounting method
- Designed for tertiary and industrial installations
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with motor control and protection systems to ensure compliance and safety.
Applications
- Industrial motor control and protection
- Tertiary installations requiring motor overload protection
- Direct association with CTX3 contactors
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Supports longer motor lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies, typically 1 year against manufacturing defects.
Available Now
The Legrand Thermal Overload Relay RTX3 65 22-32A Class 10A is available for immediate purchase, ideal for industrial and tertiary motor protection applications.
