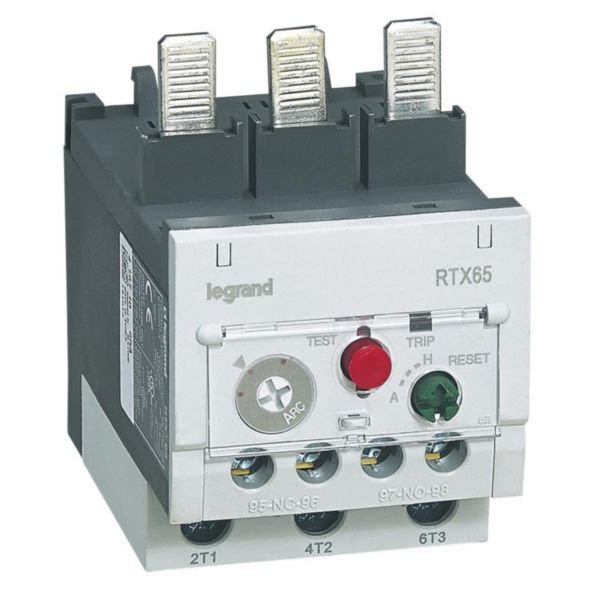

Thermal Overload Relay RTX3 65 | 22-32A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 65 is designed for motor protection with an adjustable current range of 22-32A and a Class 10A release. Ideal for industrial and tertiary applications, it features a trip indicator, automatic/manual reset options, and a direct attachment mounting method, ensuring reliable operation and safety in motor control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 65 | 22-32A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416707
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, RTX3 Overload Relay, Legrand Motor Relay
Technical Specifications
- Adjustable current range: 22-32 A
- Max rated operation voltage (Ue): 690 V
- Mounting method: Direct attachment
- Type of electrical connection: Screw connection
- Auxiliary contacts: 1 NO + 1 NC (0.75A / 240V AC - 15)
- Cage terminals capacity: Power 4mm² to 6mm², Auxiliary circuit 1mm²
- Release class: Class 10
- Reset button selector: Automatic or manual reset
- Includes trip indicator and Stop/Test button
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- Adjustable current range from 22 to 32 A
- 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contact
- Reset button selector with automatic or manual reset options
- Trip indicator and Stop/Test button for easy operation
- Direct attachment mounting method
- Screw connection for main circuit electrical connection
- Release class 10 for motor protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with motor control and protection devices to ensure safety and compliance with electrical standards.
Applications
- Tertiary and industrial motor control and protection installations
- Direct association with CTX3 contactors for motor protection
- Suitable for use in industrial automation and machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Supports longer motor life and reduces maintenance needs
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty policy for details.
Available Now
The Legrand Thermal Overload Relay RTX3 65 22-32A Class 10A Differential is available for immediate purchase, ideal for industrial and tertiary motor control applications.
