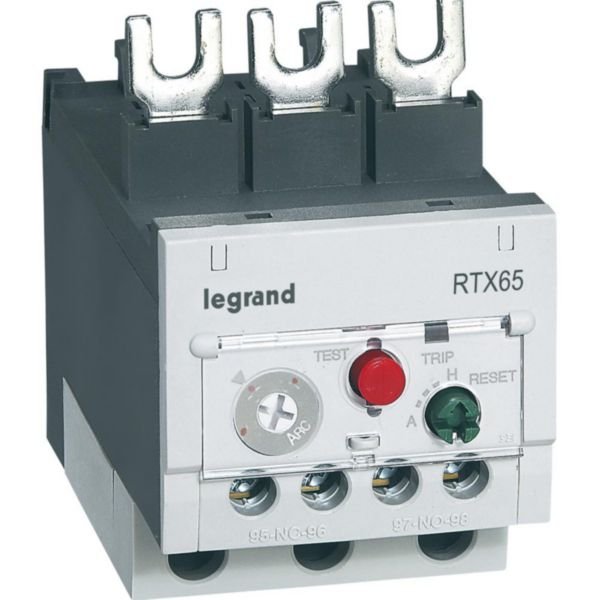

Thermal Overload Relay RTX3 65 | 28-40A Adjustable Range | Class 10A | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 65 is designed for effective motor protection, featuring an adjustable current range of 28-40A and a Class 10A release. Ideal for tertiary and industrial applications, this relay ensures reliable overload protection and integrates seamlessly with CTX3 contactors, enhancing motor lifespan and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 65 | 28-40A Adjustable Range | Class 10A | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416688
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, RTX3 Overload Relay, Legrand Motor Relay
Technical Specifications
- Adjustable current range: 28-40 A
- Max rated operation voltage (Ue): 690 V
- Mounting method: Direct attachment
- Type of electrical connection: Screw connection
- Number of auxiliary contacts (normally closed): 1
- Number of auxiliary contacts (normally open): 1
- Release class: CLASS 10
- Auxiliary contact rating: 0.75A / 240V AC - 15
- Dimensions (H x L x W): 90mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- Adjustable current range from 28 to 40 A
- 1NO + 1NC auxiliary contacts (0.75A / 240V AC - 15)
- Screw terminals capacity: Power 4mm² to 10mm², Auxiliary circuit 1mm²
- Reset button selector with automatic or manual reset options
- Trip indicator and Stop/Test button
- Direct attachment mounting method
- Designed for tertiary and industrial installations
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with safety standards and proper integration with motor control systems.
Applications
- Tertiary and industrial motor control and protection
- Direct association with CTX3 contactors
- Motor overload protection in industrial electrical installations
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Supports longer motor lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty policy for details.
Available Now
Legrand Thermal Overload Relay RTX3 65 28-40A Class 10A is available for immediate purchase, ideal for industrial and tertiary motor protection applications.
