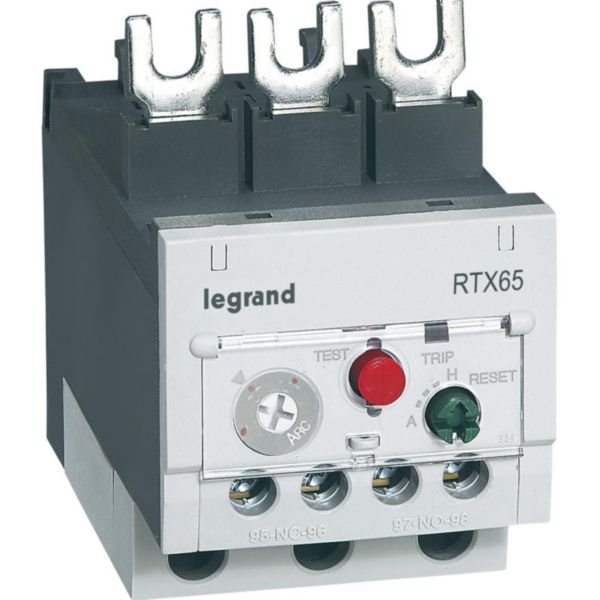

Thermal Overload Relay RTX3 65 | 45-65A Adjustable Range | Class 10A | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 65 is designed for reliable motor protection with an adjustable current range of 45-65A and a Class 10A rating. Ideal for tertiary and industrial applications, it features a trip indicator, automatic/manual reset options, and direct attachment mounting. This relay ensures optimal performance and longevity for your motors, making it a must-have for industrial automation and machinery protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 65 | 45-65A Adjustable Range | Class 10A | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416690
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, RTX3 Overload Relay, Legrand Motor Relay
Technical Specifications
- Adjustable current range: 45-65 A
- Max rated operation voltage (Ue): 690 V
- Mounting method: Direct attachment
- Type of electrical connection: Screw connection
- Auxiliary contacts: 1 normally closed (NC), 1 normally open (NO)
- Release class: CLASS 10
- Reset button selector: Automatic or manual reset
- Trip indicator and Stop/Test button included
- Dimensions (H x L x W): 90mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- Adjustable current range from 45 to 65 A
- 1NO + 1NC auxiliary contacts (0.75A / 240V AC - 15)
- Screw terminals capacity: Power 10mm² / Auxiliary circuit 1mm²
- Reset button selector with automatic or manual reset options
- Trip indicator and Stop/Test button
- Direct attachment mounting method
- Designed for tertiary and industrial installations
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure correct setup and compliance with safety standards.
Applications
- Tertiary and industrial motor control and protection
- Direct association with CTX3 contactors
- Industrial automation and machinery protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Supports longer motor lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Legrand Thermal Overload Relay RTX3 65 45-65A Class 10A is available now for immediate purchase. Ideal for industrial motor control and protection applications.
