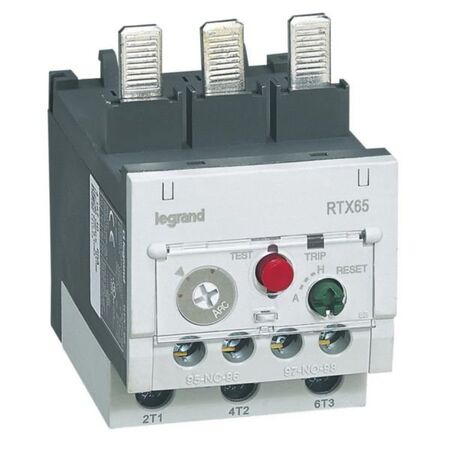

Thermal Overload Relay RTX3 65 | 45-65A Adjustable Range | Class 10A | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 65 is designed for precise motor protection with an adjustable current range of 45-65A and a Class 10A release. Ideal for tertiary and industrial applications, it features 1NO + 1NC auxiliary contacts and a reset button selector for easy operation. Ensure your motors are safeguarded against overloads while extending their lifespan with this reliable relay.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 65 | 45-65A Adjustable Range | Class 10A | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416710
Alternatively Known As: Motor Overload Relay, Thermal Motor Protector, RTX3 Thermal Relay, Motor Protection Relay
Technical Specifications
- Adjustable current range: 45-65 A
- Max rated operation voltage (Ue): 690 V
- Release class: CLASS 10
- Auxiliary contacts: 1 normally open (NO) + 1 normally closed (NC)
- Auxiliary contact rating: 0.75A / 240V AC - 15
- Mounting method: Direct attachment
- Main circuit electrical connection: Screw connection
- Cage terminals capacity: Power 10mm² / Auxiliary circuit 1mm²
- Dimensions (H x L x W): 90mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- Adjustable current range from 45 to 65 A
- 1NO + 1NC auxiliary contacts (0.75A / 240V AC - 15)
- Reset button selector with automatic or manual reset options
- Trip indicator and Stop/Test button for easy operation
- Direct attachment mounting method
- Screw connection for main circuit electrical connection
- Designed for tertiary and industrial installations
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is required to ensure correct setup and compliance with safety standards.
Applications
- Tertiary and industrial motor control and protection installations
- Direct association with CTX3 contactors for motor overload protection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Supports longer motor lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand warranty policy for details.
Available Now
The Legrand Thermal Overload Relay RTX3 65 45-65A Class 10A Differential is available for immediate purchase, ideal for industrial and tertiary motor control applications.
