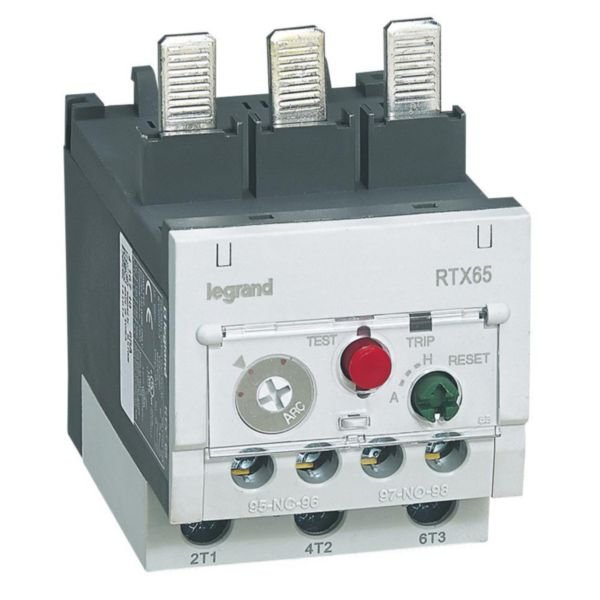

Thermal Overload Relay RTX3 65 | 9-13A Adjustable Range | Class 10A | Direct Attachment | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 65 is designed for motor protection with an adjustable current range of 9-13A and a maximum rated operation voltage of 690V. Ideal for industrial automation systems, it features a direct attachment mounting method and includes a trip indicator and reset button for enhanced safety and functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 65 | 9-13A Adjustable Range | Class 10A | Direct Attachment | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416703
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, RTX3 Overload Relay, Legrand Motor Relay
Technical Specifications
- Adjustable current range: 9-13 A
- Max rated operation voltage (Ue): 690 V
- Mounting method: Direct attachment
- Type of electrical connection of main circuit: Screw connection
- Number of auxiliary contacts normally closed (NC): 1
- Number of auxiliary contacts normally open (NO): 1
- Number of auxiliary contacts change-over: 0
- Release class: CLASS 10
- Auxiliary contact rating: 0.75A / 240V AC - 15
- Cage terminals capacity: Power 1.5mm² to 2.5mm², Auxiliary circuit 1mm²
- Reset button selector: Automatic or manual reset
- Trip indicator and Stop/Test button included
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- 1NO + 1NC auxiliary contact (0.75A / 240V AC - 15)
- Cage terminals capacity: Power 1.5mm² to 2.5mm² / Auxiliary circuit 1mm²
- Reset button selector with automatic or manual reset options
- Trip indicator and Stop/Test button
- Direct attachment mounting method
- Screw connection for main circuit electrical connection
- Adjustable current range from 9 to 13 A
- Max rated operation voltage of 690 V
- Release class: CLASS 10
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is required to ensure correct setup and compliance with safety standards.
Applications
- Tertiary and industrial motor control and protection
- Direct association with CTX3 contactors
- Motor overload protection in industrial automation systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Supports longer motor lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Legrand Thermal Overload Relay RTX3 65 9-13A Class 10A Differential is available now for immediate purchase. Ideal for industrial motor control and protection applications.
