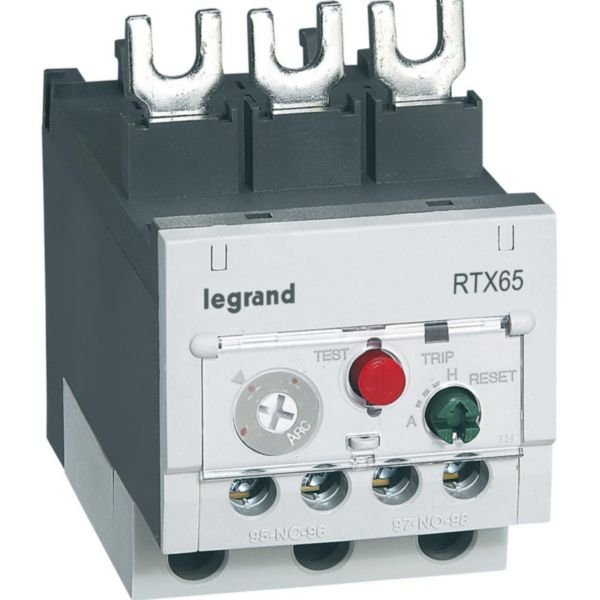

Thermal Overload Relay RTX3 65 | 9-13A Adjustable Range | Class 10A | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 65 is designed for precise motor protection with an adjustable current range of 9-13A. Ideal for industrial and tertiary applications, it features a trip indicator, automatic/manual reset options, and screw terminals for easy installation. This relay ensures compliance with safety standards while extending motor lifespan and preventing damage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 65 | 9-13A Adjustable Range | Class 10A | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416683
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, RTX3 Overload Relay, Legrand Motor Relay
Technical Specifications
- Adjustable current range: 9-13 A
- Max rated operation voltage (Ue): 690 V
- Mounting method: Direct attachment
- Type of electrical connection: Screw connection
- Auxiliary contacts: 1 NO + 1 NC (0.75A / 240V AC - 15)
- Release class: Class 10
- Reset button selector: Automatic or manual reset
- Trip indicator and Stop/Test button included
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- Adjustable current range from 9 to 13 A
- 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts
- Screw terminals for power (1.5mm² to 2.5mm²) and auxiliary circuit (1mm²)
- Reset button selector with automatic or manual reset options
- Trip indicator and Stop/Test button for easy operation
- Direct attachment mounting method
- Release class 10
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with motor control and protection devices to ensure compliance with safety standards.
Applications
- Tertiary and industrial motor control and protection
- Direct association with CTX3 contactors
- Motor overload protection in industrial automation systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Supports longer motor lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty policy for details.
Available Now
The Legrand Thermal Overload Relay RTX3 65 9-13A Class 10A is available for immediate purchase, ideal for industrial and tertiary motor protection applications.
