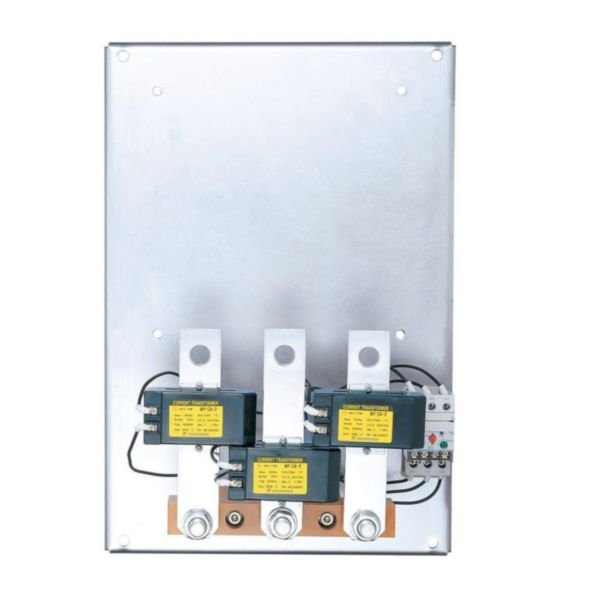

Thermal Overload Relay RTX3 800 | 520-800A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 800 is designed for reliable motor protection, featuring an adjustable current range from 520 to 800A and a Class 10A release. Ideal for industrial applications, it ensures safety with its automatic/manual reset options and trip indicator, making it perfect for integration with motor control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 800 | 520-800A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416795
Alternatively Known As: Thermal Overload Relay RTX3, Motor Protection Relay, Overload Relay 520-800A, Class 10A Thermal Relay
Technical Specifications
- Adjustable current range: 520-800 A
- Max rated operation voltage (Ue): 690 V
- Mounting method: Direct attachment
- Type of electrical connection: Screw connection
- Auxiliary contacts: 1 normally open (NO), 1 normally closed (NC)
- Auxiliary contact rating: 0.75A / 240V AC
- Screw terminal capacity: Power 2x240mm², Auxiliary circuit 1mm²
- Release class: CLASS 10
- Reset button selector: Automatic or manual reset
- Includes trip indicator and Stop/Test button
- Dimensions (H x L x W): 120mm x 110mm x 90mm
- Weight: 1.5 kg
Key Features
- Adjustable current range from 520 to 800 A
- 1NO + 1NC auxiliary contacts (0.75A / 240V AC)
- Screw terminals capacity: Power 2x240mm², Auxiliary circuit 1mm²
- Reset button selector with automatic or manual reset
- Trip indicator and Stop/Test button
- Direct attachment mounting method
- Release class: CLASS 10
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure proper integration with motor control systems and compliance with safety standards.
Applications
- Industrial motor control and protection
- Tertiary and industrial electrical installations
- Direct association with CTX3 contactors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Durable design reduces need for frequent replacements, minimizing electronic waste
Warranty Information
Standard manufacturer warranty of 1 year against defects in materials and workmanship.
Available Now
The Legrand Thermal Overload Relay RTX3 800 520-800A Class 10A Differential is available for immediate purchase, ideal for industrial motor protection and control applications.
