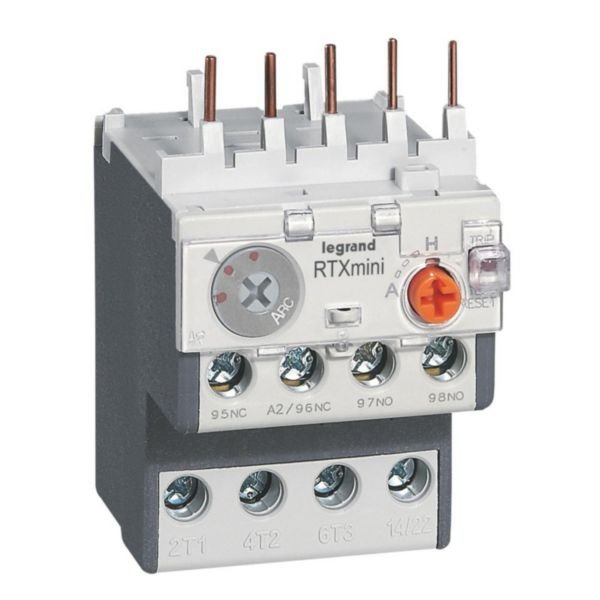

Thermal Overload Relay RTX3 Mini | 4-6A Adjustable Range | Class 10A | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 Mini is designed for effective motor protection, featuring an adjustable current range of 4-6A and a Class 10A release. Ideal for industrial and tertiary applications, it includes auxiliary contacts and a reset button for enhanced functionality, ensuring reliable operation and longevity of your motors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 Mini | 4-6A Adjustable Range | Class 10A | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417088
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, RTX3 Mini Relay, Legrand Motor Relay
Technical Specifications
- Adjustable current range: 4-6 A
- Max rated operation voltage (Ue): 690 V
- Mounting method: Direct attachment
- Electrical connection type: Screw connection
- Auxiliary contacts: 1 NO + 1 NC
- Auxiliary contact rating: 0.75A / 240V AC - 15
- Release class: CLASS 10
- Reset button selector: Automatic or manual reset
- Trip indicator and Stop/Test button included
- Dimensions (H x L x W): 70mm x 60mm x 45mm
- Weight: 0.15 kg
Key Features
- Adjustable current range from 4 to 6 A
- 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts (0.75A / 240V AC - 15)
- Screw terminal connections for power (1.25mm² to 2mm²) and auxiliary circuits (1mm²)
- Reset button selector with automatic or manual reset options
- Trip indicator and Stop/Test button
- Direct attachment mounting method
- Designed for direct association with CTX3 mini contactor
- Release class: CLASS 10
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with motor control and protection devices to ensure compliance with safety standards and optimal performance.
Applications
- Protection of 3-phase motors up to 2.2kW at 415V
- Tertiary and industrial motor control and protection installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Supports longer motor lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand's official warranty policy for details.
Available Now
The Legrand Thermal Overload Relay RTX3 Mini 4-6A Class 10A Differential is available for immediate purchase, ideal for industrial and tertiary motor protection applications.
