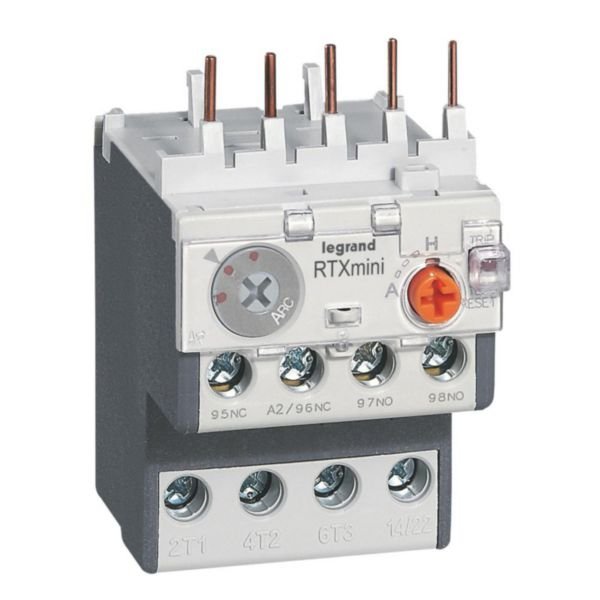

Thermal Overload Relay RTX3 Mini 40 | 0.16-0.25A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
The Thermal Overload Relay RTX3 Mini 40 is designed for effective motor protection, featuring an adjustable current range of 0.16-0.25A and a maximum rated operation voltage of 690V. Ideal for 3-phase motors in industrial and tertiary applications, this relay ensures safety and efficiency with its Class 10A differential release class and direct attachment mounting method.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Overload Relay RTX3 Mini 40 | 0.16-0.25A Adjustable Range | Class 10A Differential | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417081
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, RTX3 Mini Relay, Legrand Motor Relay
Technical Specifications
- Adjustable current range: 0.16-0.25 A
- Max rated operation voltage (Ue): 690 V
- Number of auxiliary contacts (normally closed): 1
- Number of auxiliary contacts (normally open): 1
- Number of auxiliary contacts (change-over): 0
- Type of electrical connection: Screw connection
- Mounting method: Direct attachment
- Release class: CLASS 10
- Auxiliary contact rating: 0.75A / 240V AC - 15
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.1 kg
Key Features
- 1NO + 1NC auxiliary contact (0.75A / 240V AC - 15)
- Screw terminals capacity: Power 1.25mm² to 2mm² / Auxiliary circuit 1mm²
- Reset button selector with automatic or manual reset
- Trip indicator and Stop/Test button
- Direct association to CTX3 mini contactor
- Adjustable current range from 0.16 to 0.25 A
- Max rated operation voltage 690 V
- Mounting method: Direct attachment
- Screw connection for main circuit
- Release class: CLASS 10
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure correct setup and compliance with safety standards.
Applications
- Protection of 3-phase motors in tertiary and industrial installations
- Motor control and protection systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent motor damage and energy waste by providing precise overload protection
- Supports longer motor lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty policy for details.
Available Now
The Legrand Thermal Overload Relay RTX3 Mini 40 0.16-0.25A Class 10A Differential is available now for immediate purchase. Ideal for motor protection in industrial and tertiary applications.
